Individual hose record
4470091 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Supply and Return Valve
Finished length300 mm
Locate this hose

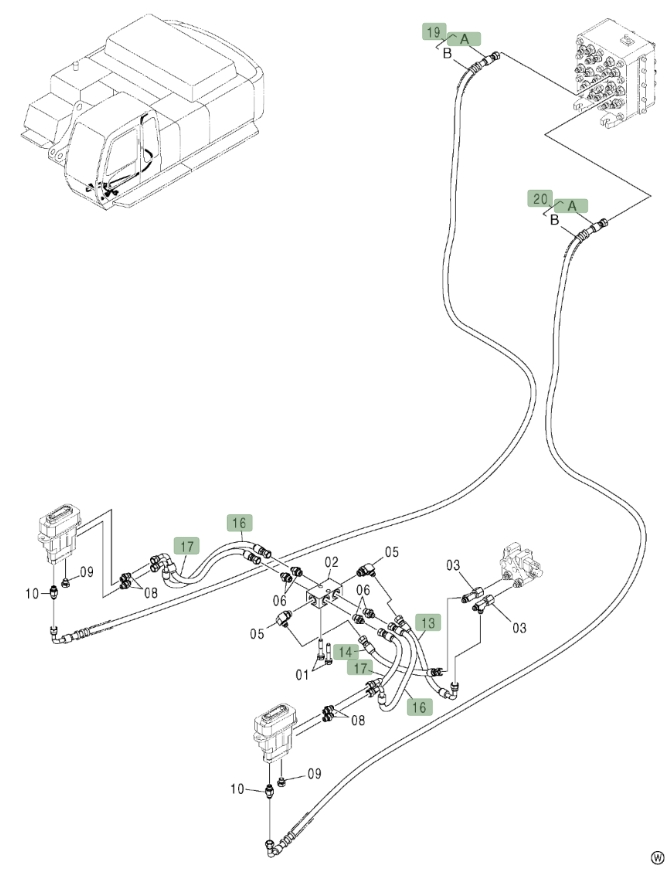

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4470091 before removing the hose.
Repair specifications
- Part number
- 4470091
- Diagram pipe number
- 14
- Installation route
- 进回油阀~过渡阀块(装载踏板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
