Individual hose record

730501006844 Hose Repair Specifications

Excavator · Sunward · SWE205E-3H · Control Lever

Finished length2,490 mm

Locate this hose

Installation diagram — Pipe No. 74

Locate Pipe No. 74 in the diagram, then confirm part number 730501006844 before removing the hose.

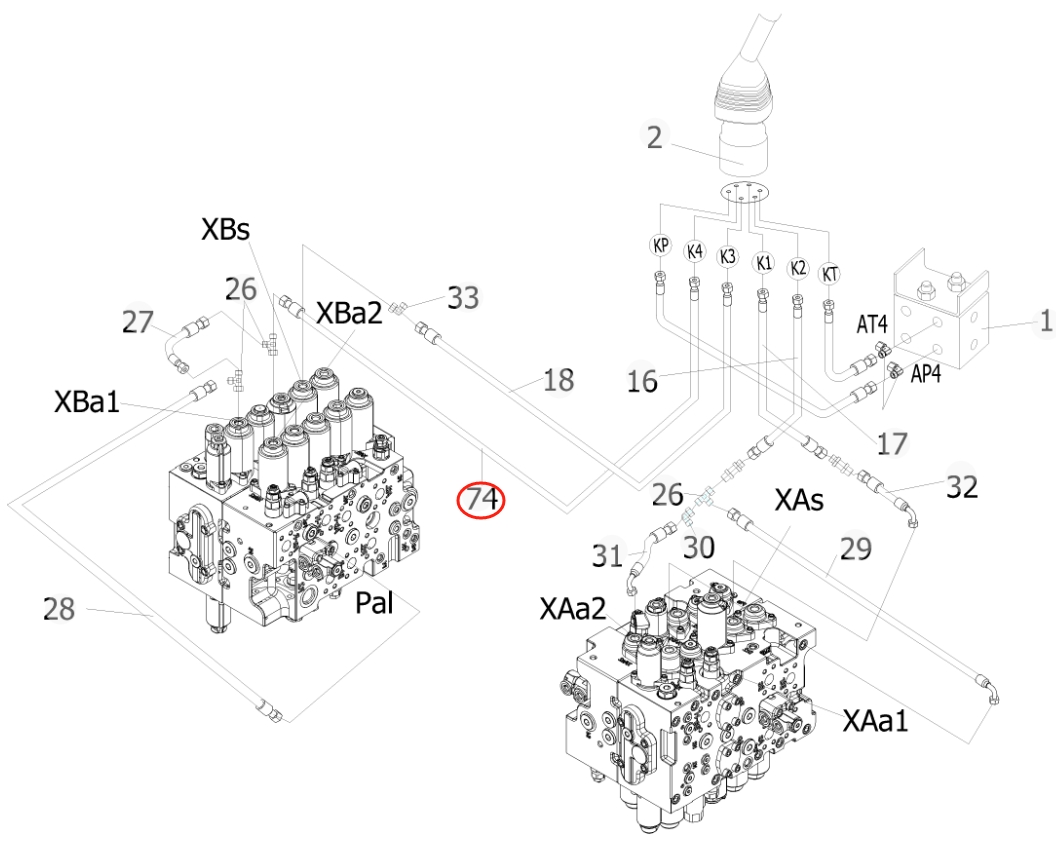

Sunward SWE205E-3H installation diagram showing hydraulic hose 730501006844 at Pipe No. 74 — Sunward SWE205E-3HPart 730501006844 · Pipe No. 74Open full-size diagram

Repair specifications

Part number: 730501006844
Diagram pipe number: 74
Installation route: 左手柄K4~分配阀上XBA2
Hose specification: DN8;1SN-05;22.5MPa
Finished length: 2,490 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 25

730502002624

Installation route: 左手柄K4~分配阀上XBA2

Length: 950 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 32

730501002290

Installation route: 左手柄K1~分配阀下XAS

Length: 950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 17

730501000544

Installation route: 左手柄K1~分配阀下XAS

Length: 1,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 24

730501001125

Installation route: 右手柄I3~分配阀下XBK

Length: 1,700 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 14

730502002435

Installation route: 右手柄~进回油阀

Length: 1,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
