Individual hose record
4477077 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-5B · Supply and Return Valve
Finished length2,950 mm
Locate this hose

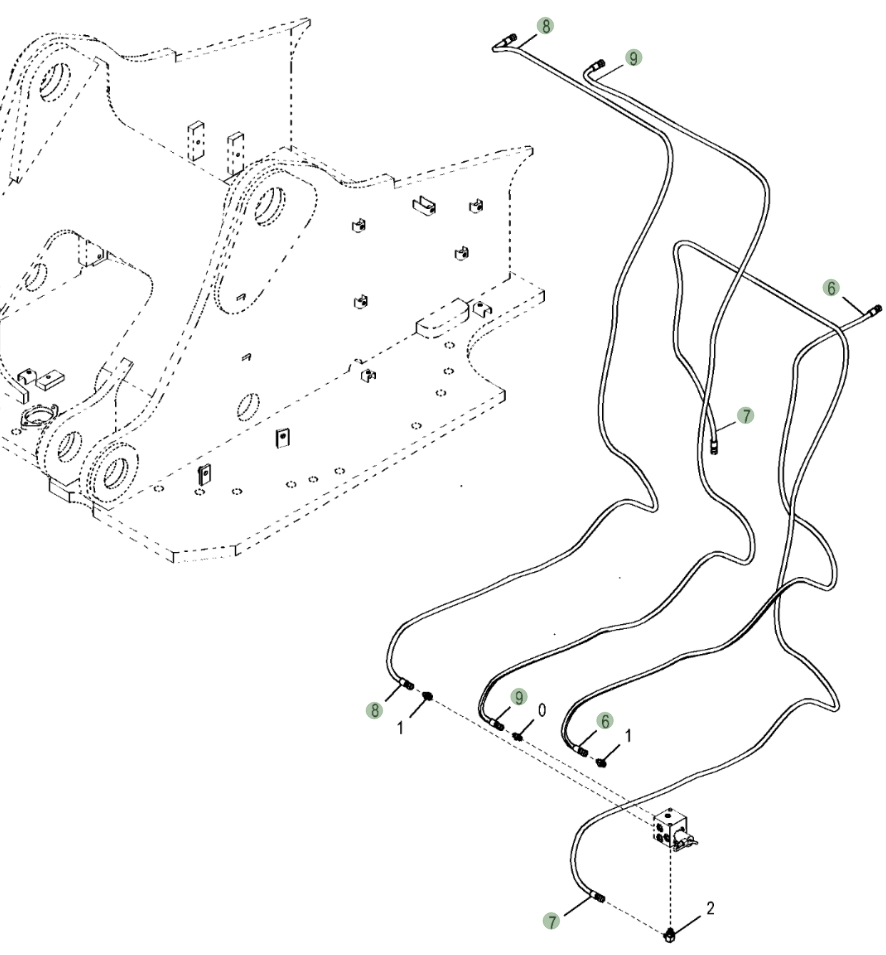

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4477077 before removing the hose.
Repair specifications
- Part number
- 4477077
- Diagram pipe number
- 6
- Installation route
- 进回油阀~
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,950 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
