Individual hose record
4668145 Hose Repair Specifications
Excavator · Hitachi · ZX26U-5N · Swing Motor
Finished length280 mm
Locate this hose

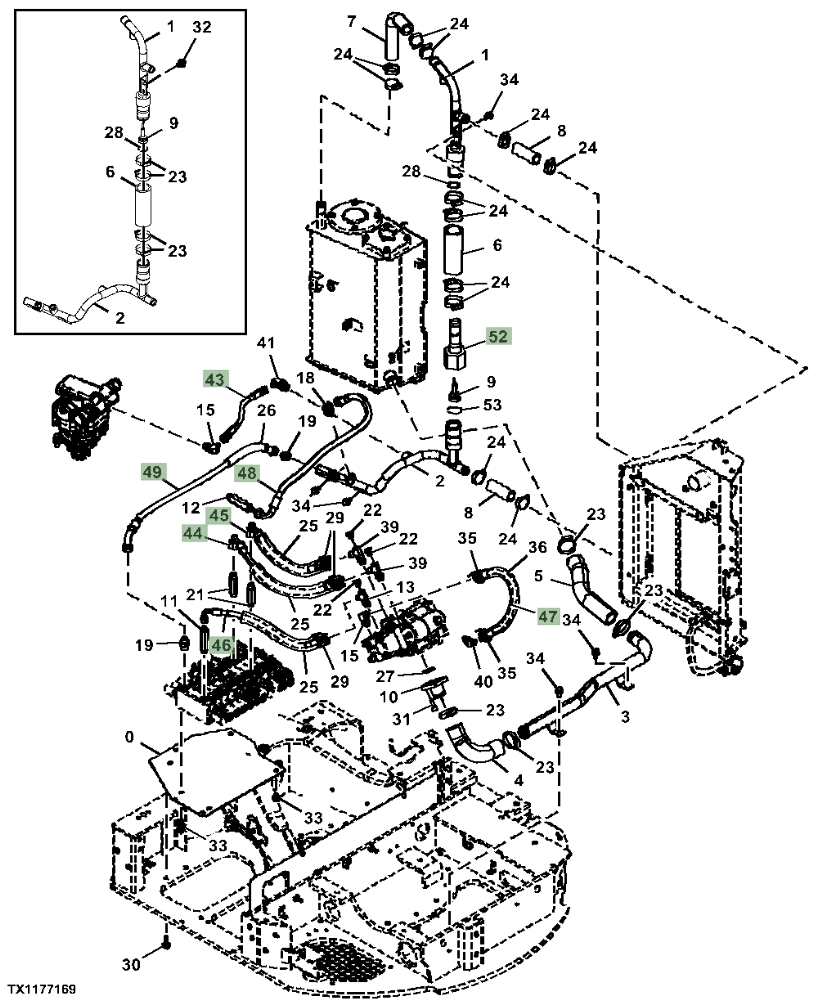

Installation diagram — Pipe No. 43
Locate Pipe No. 43 in the diagram, then confirm part number 4668145 before removing the hose.
Repair specifications
- Part number
- 4668145
- Diagram pipe number
- 43
- Installation route
- 回转马达~回油铁管(散热器)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 280 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
