Individual hose record

4672335 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-5G · Solenoid Valve

Finished length2,150 mm

Locate this hose

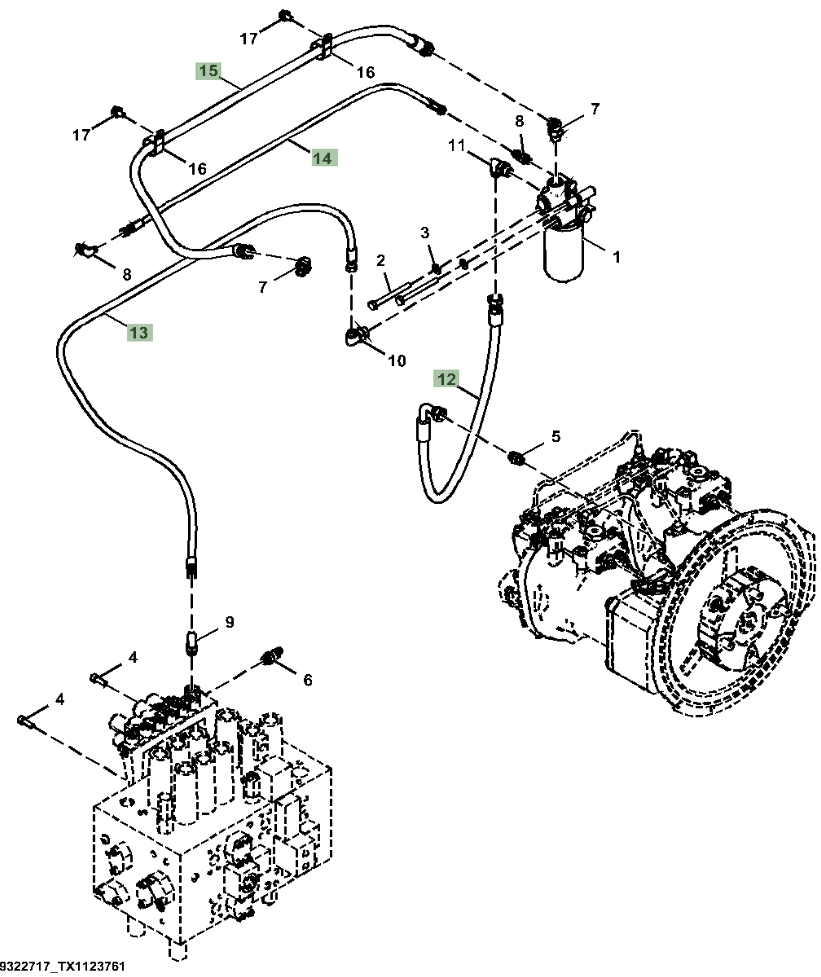

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4672335 before removing the hose.

Hitachi ZX350LC-5G installation diagram showing hydraulic hose 4672335 at Pipe No. 13 — Hitachi ZX350LC-5GPart 4672335 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4672335
Diagram pipe number: 13
Installation route: 电磁阀~先导滤芯
Hose specification: DN10;1SN-06;18MPa
Finished length: 2,150 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
