DS2093035 Hose Repair Specifications

Excavator · Doosan · B55W-2 · Control Valve

Finished length350 mm

Locate this hose

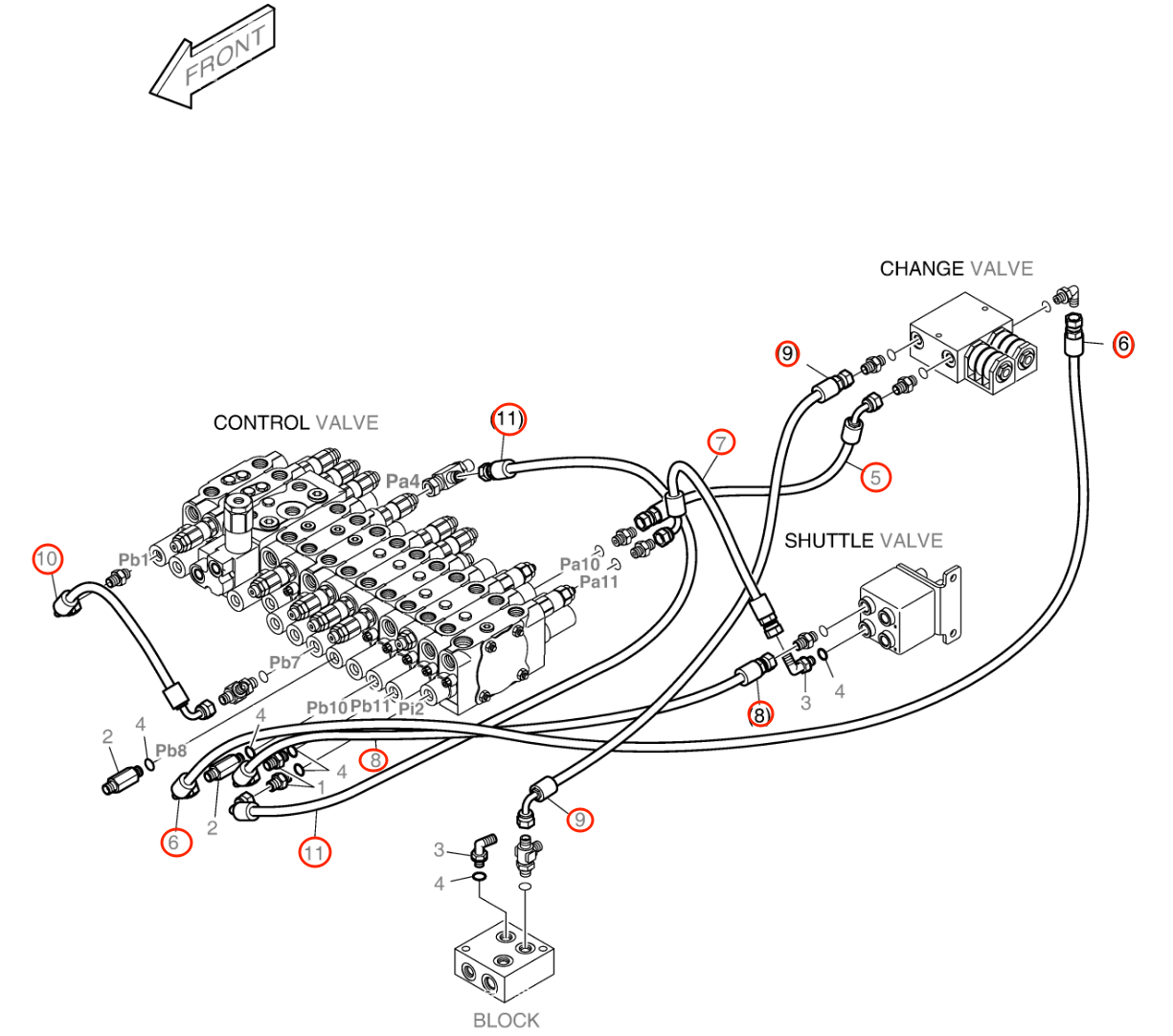

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number DS2093035 before removing the hose.

Part number: DS2093035
Diagram pipe number: 5
Installation route: 分配阀PA10口~换向阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 54

Installation route: 分配阀T1口~回油铁管(液压油箱)

Length: 1,300 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 55

Installation route: 分配阀T3口~铁管(散热器)

Diagram Pipe No. 10

Installation route: 分配阀PB6口~电磁阀(燃油箱)PA口

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 22

Installation route: 分配阀PA1口~分配阀PA7口

Length: 540 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 103

Installation route: 回油铁管(分配阀)T2口~铁管(散热器)
