Individual hose record
4313426 Hose Repair Specifications
Excavator · Hitachi · ZX300LC-6N · Hydraulic Pump
Finished length950 mm
Locate this hose

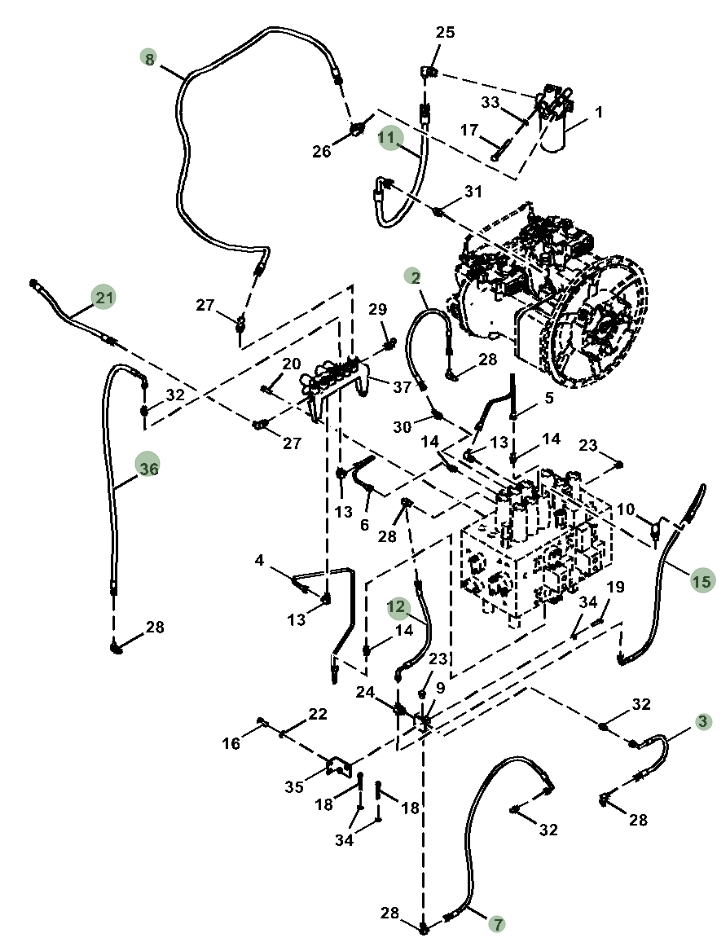

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4313426 before removing the hose.
Repair specifications
- Part number
- 4313426
- Diagram pipe number
- 11
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 950 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
