Individual hose record
4672335 Hose Repair Specifications
Excavator · Hitachi · ZX85USB-3 · Supply and Return Valve
Finished length2,150 mm
Locate this hose

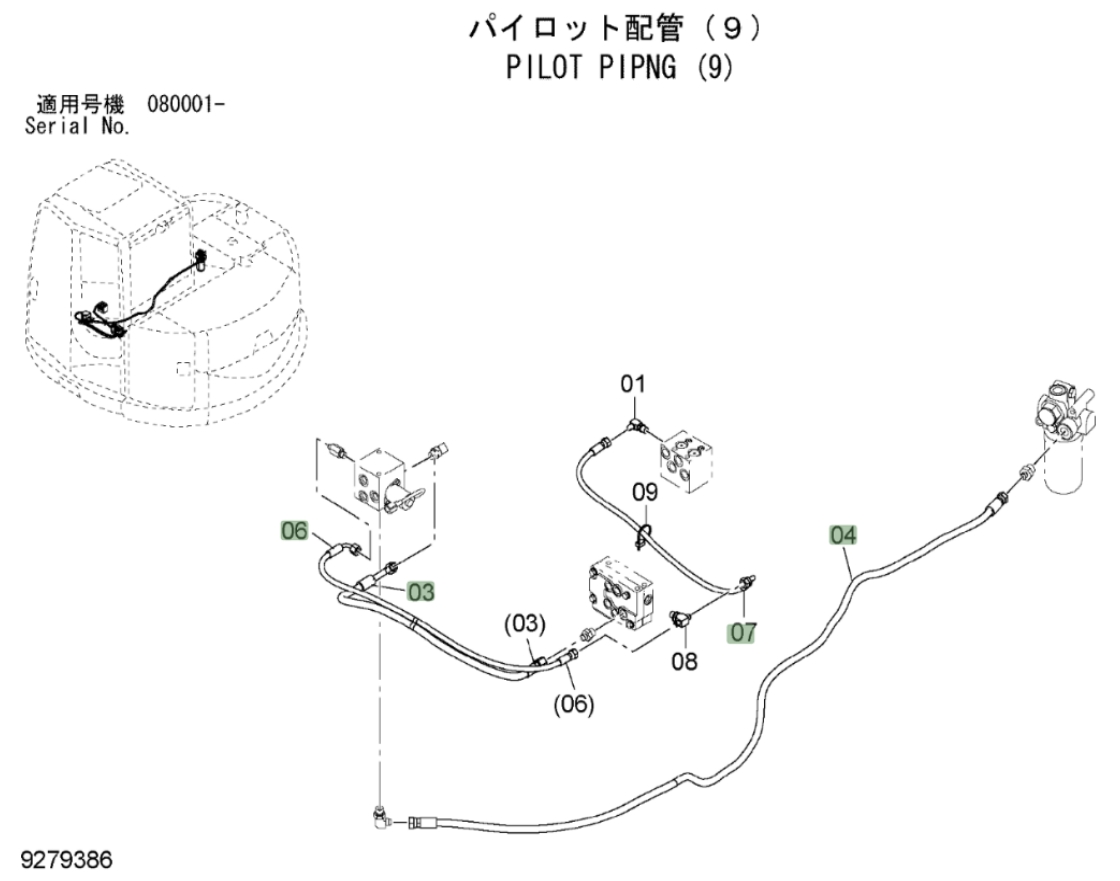

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4672335 before removing the hose.
Repair specifications
- Part number
- 4672335
- Diagram pipe number
- 4
- Installation route
- 进回油阀~先导滤芯
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,150 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
