Individual hose record
KHJ14650 Hose Repair Specifications
Excavator · Case · CX130C W/B · Attachments – Breaker
Finished length650 mm
Locate this hose

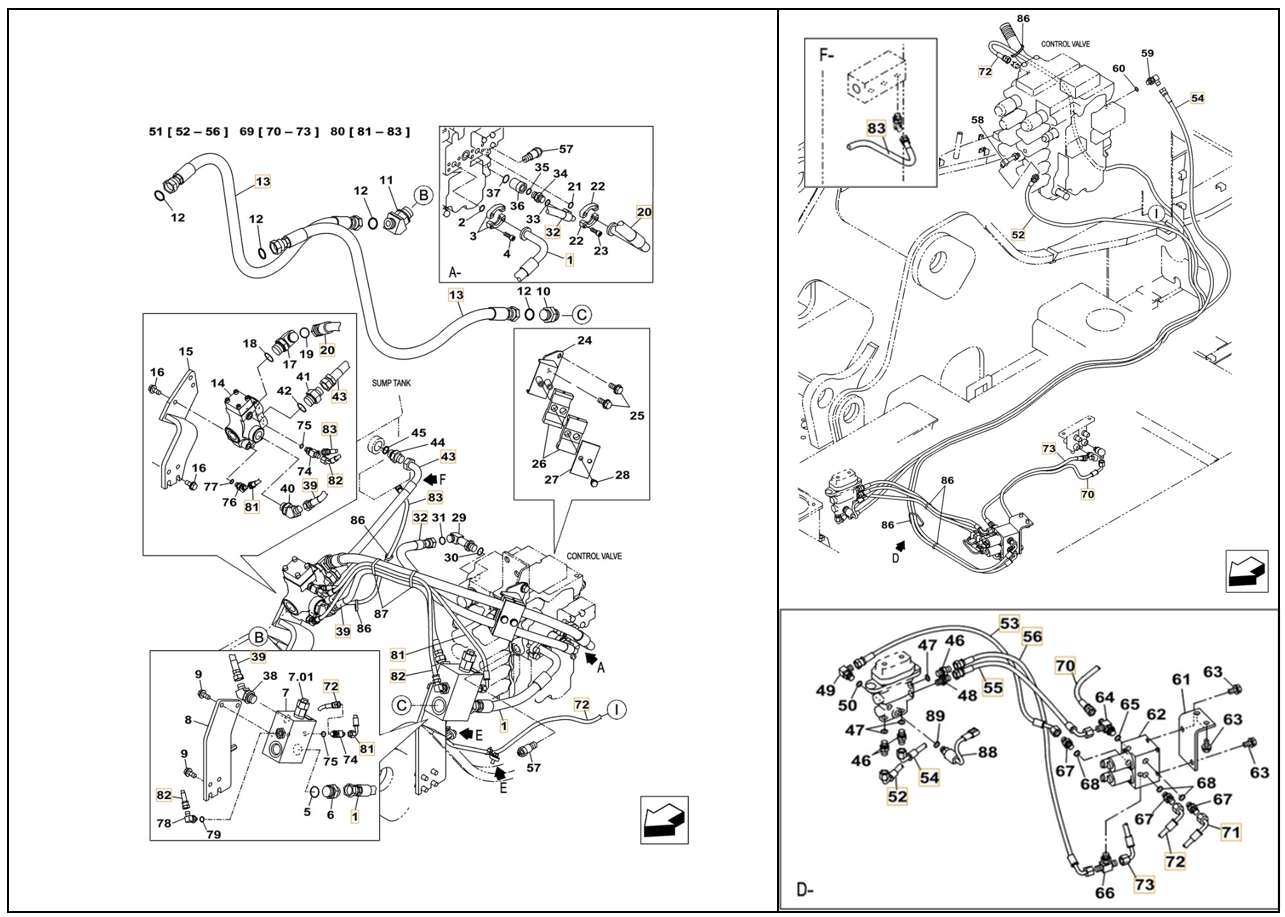

Installation diagram — Pipe No. 53
Locate Pipe No. 53 in the diagram, then confirm part number KHJ14650 before removing the hose.
Repair specifications
- Part number
- KHJ14650
- Diagram pipe number
- 53
- Installation route
- 破碎器踏板~电磁阀(破碎器踏板)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 650 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 1
