Individual hose record
4204196 Hose Repair Specifications
Excavator · Hitachi · EX100 · Control Lever
Finished length1,050 mm
Locate this hose

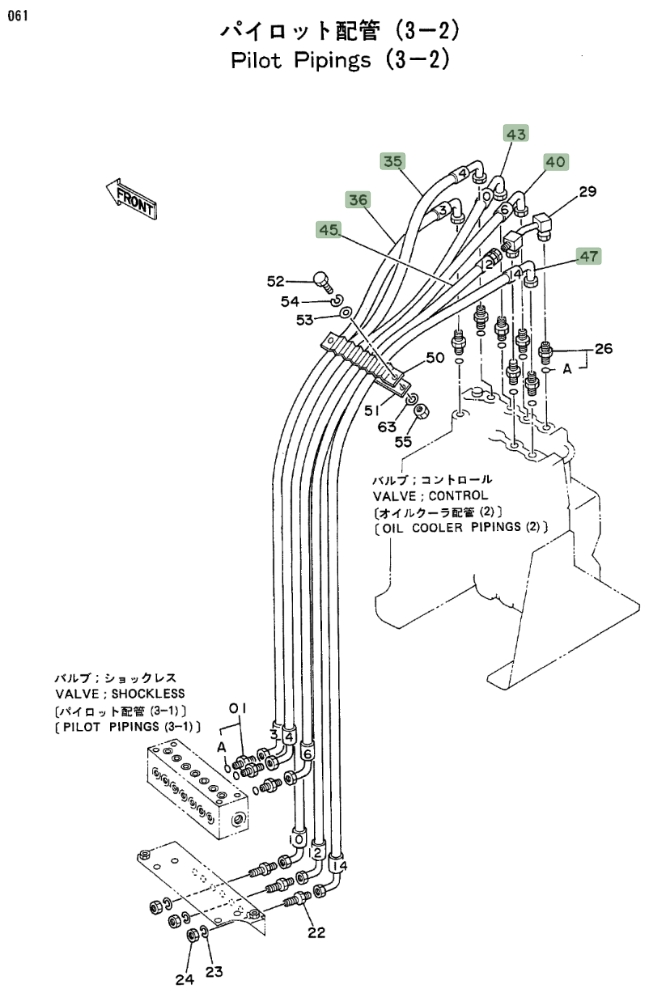

Installation diagram — Pipe No. 45
Locate Pipe No. 45 in the diagram, then confirm part number 4204196 before removing the hose.
Repair specifications
- Part number
- 4204196
- Diagram pipe number
- 45
- Installation route
- 接线板(中转接头)~分配阀上
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,050 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
