Individual hose record

73050200B130 Hose Repair Specifications

Excavator · Sunward · SWE80F-1A · Hydraulic Pump

Finished length430 mm

Locate this hose

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 73050200B130 before removing the hose.

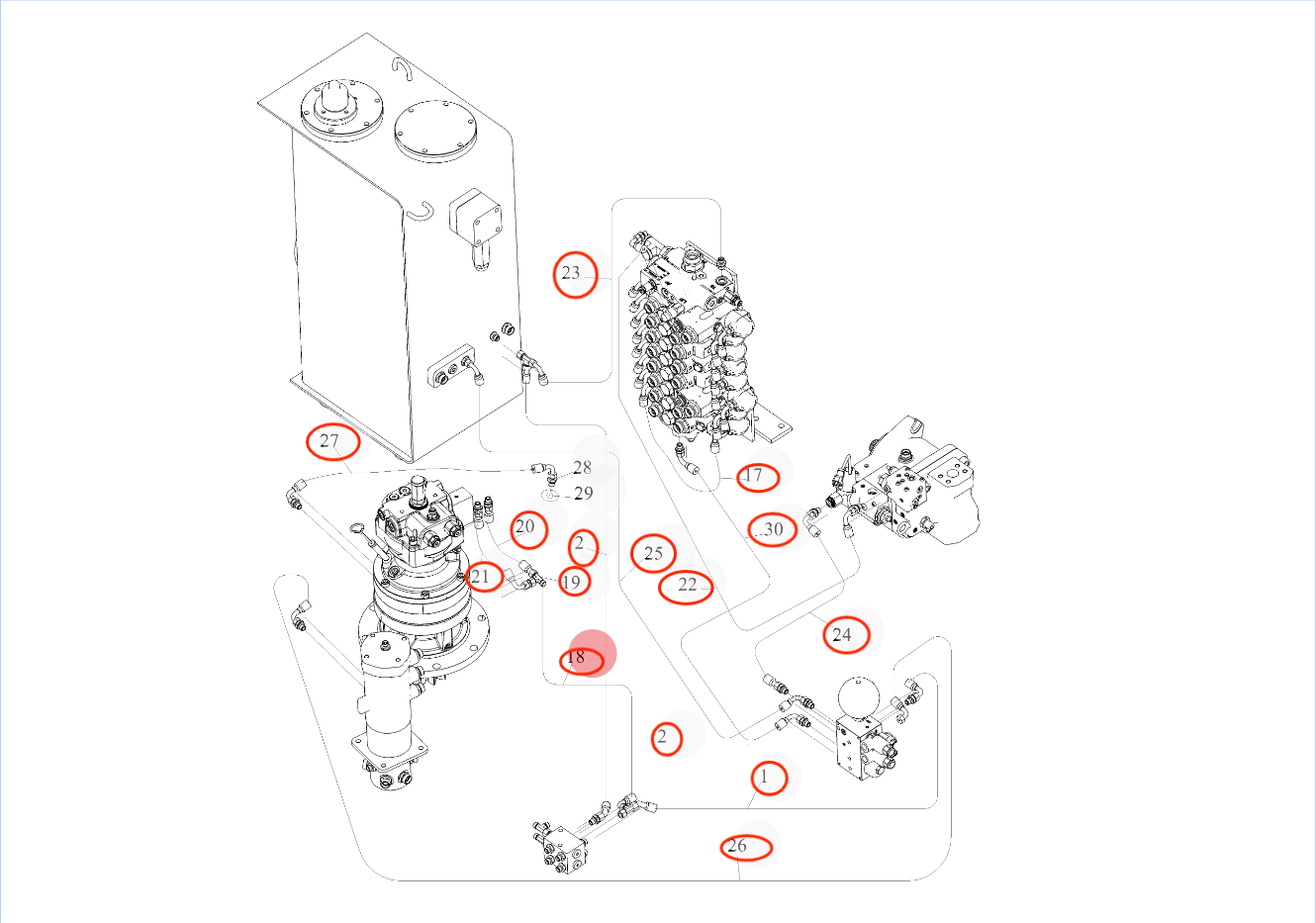

Sunward SWE80F-1A installation diagram showing hydraulic hose 73050200B130 at Pipe No. 24 — Sunward SWE80F-1APart 73050200B130 · Pipe No. 24Open full-size diagram

Repair specifications

Part number: 73050200B130
Diagram pipe number: 24
Installation route: 液压泵~电磁阀(蓄能器)
Hose specification: DN6;2SN-04;34.5MPa
Finished length: 430 mm
Working pressure: 34.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
