Individual hose record
4482948 Hose Repair Specifications
Excavator · Hitachi · ZXS370F-3 · Swivel Joint
Finished length2,000 mm
Locate this hose

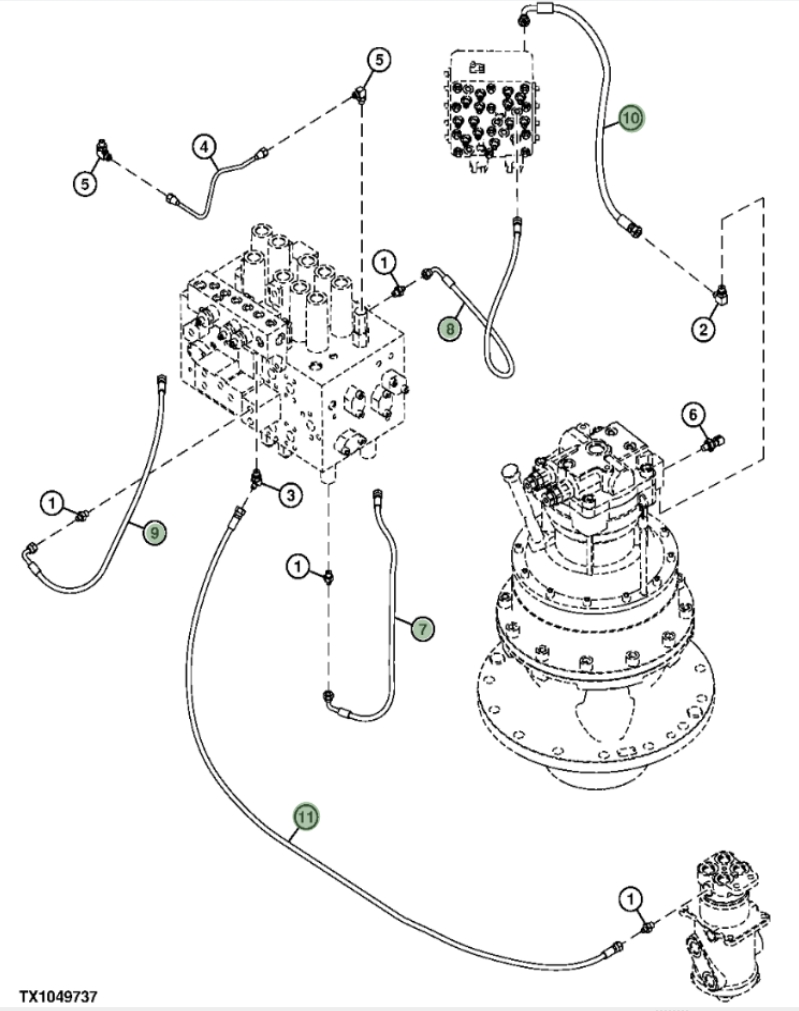

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4482948 before removing the hose.
Repair specifications
- Part number
- 4482948
- Diagram pipe number
- 11
- Installation route
- 回转接头~电磁阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,000 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
