Individual hose record

DS2093017 Hose Repair Specifications

Excavator · Doosan · DX55W · Grease Lines

Finished length530 mm

Locate this hose

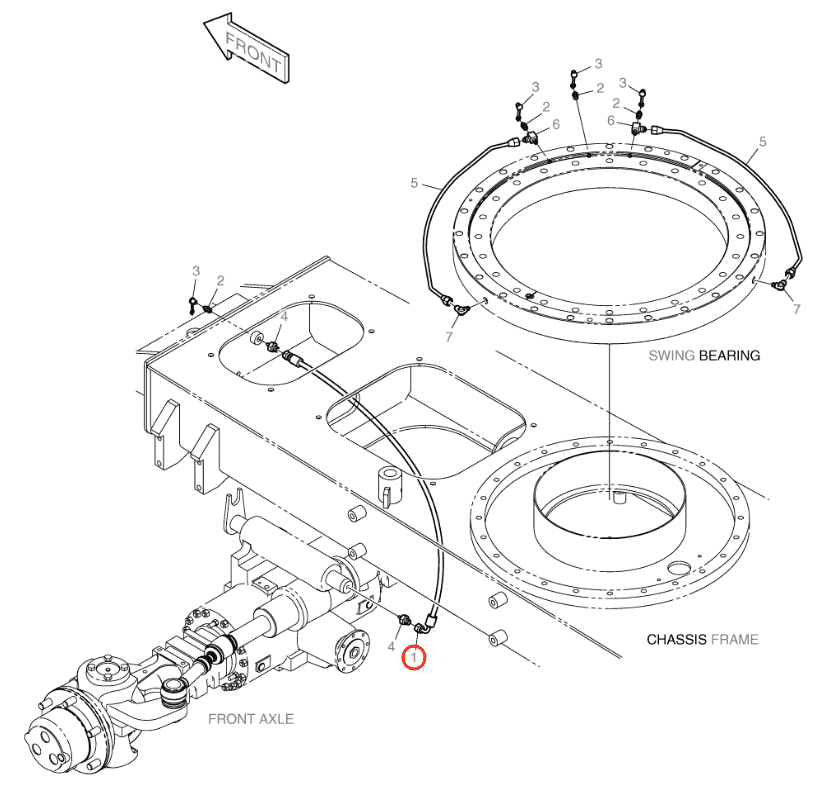

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number DS2093017 before removing the hose.

Part number: DS2093017
Diagram pipe number: 1
Installation route: 前桥黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 530 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 12

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 530 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
