Individual hose record
4674168 Hose Repair Specifications
Excavator · Hitachi · ZX130-5G · Supply and Return Valve
Finished length2,650 mm
Locate this hose

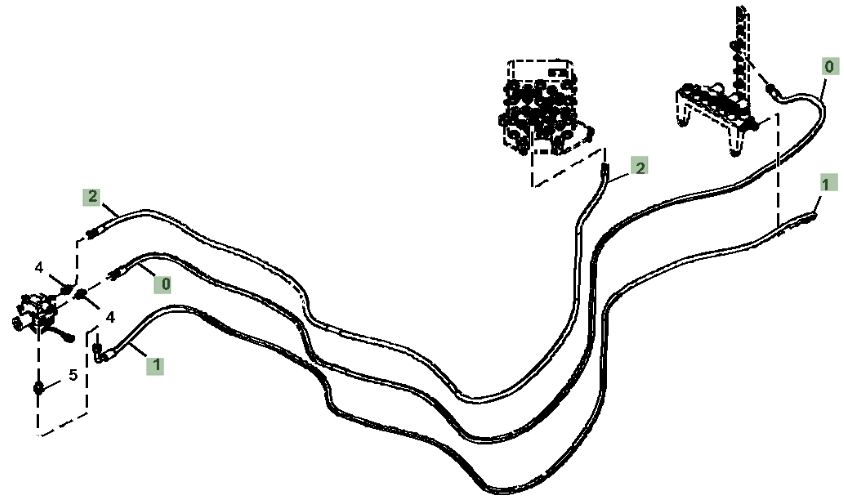

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4674168 before removing the hose.
Repair specifications
- Part number
- 4674168
- Diagram pipe number
- 2
- Installation route
- 进回油阀~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
