Individual hose record
4214407 Hose Repair Specifications
Excavator · Hitachi · EX160WD · Swivel Joint
Finished length650 mm
Locate this hose

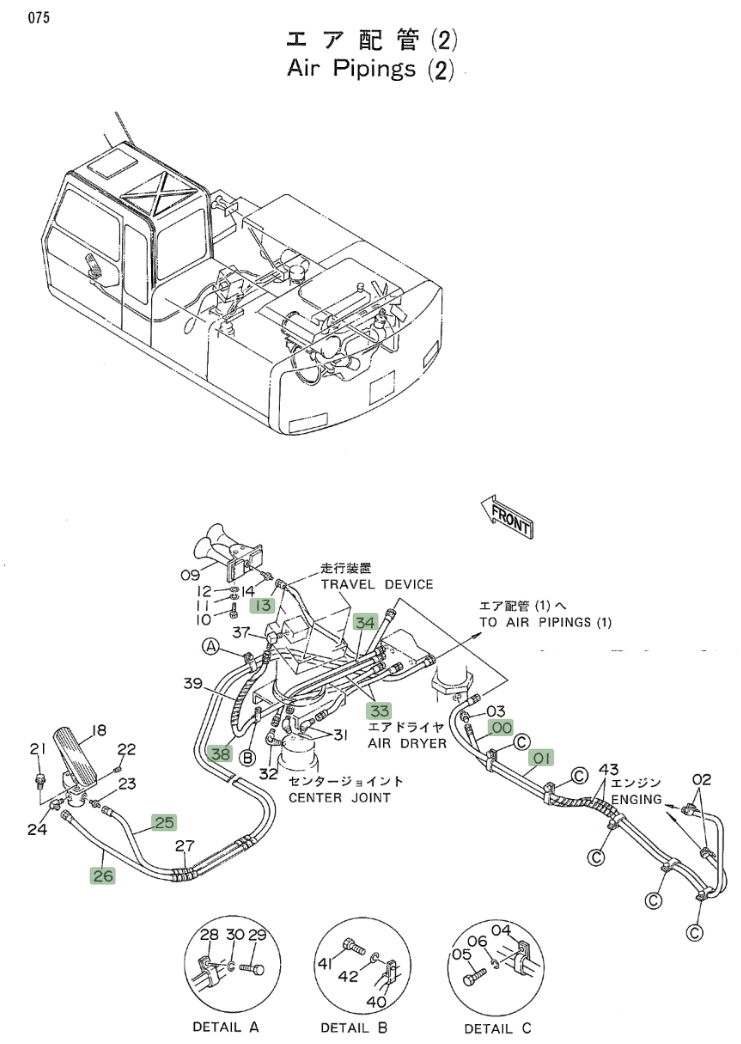

Installation diagram — Pipe No. 33
Locate Pipe No. 33 in the diagram, then confirm part number 4214407 before removing the hose.
Repair specifications
- Part number
- 4214407
- Diagram pipe number
- 33
- Installation route
- 回转接头~过渡阀块(贮气罐)
- Hose specification
- DN10;4层纤维-6;3.5MPa
- Finished length
- 650 mm
- Working pressure
- 3.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 2
