Individual hose record

4453063 Hose Repair Specifications

Excavator · Hitachi · ZX210F-FE-6N · Attachments

Finished length630 mm

Locate this hose

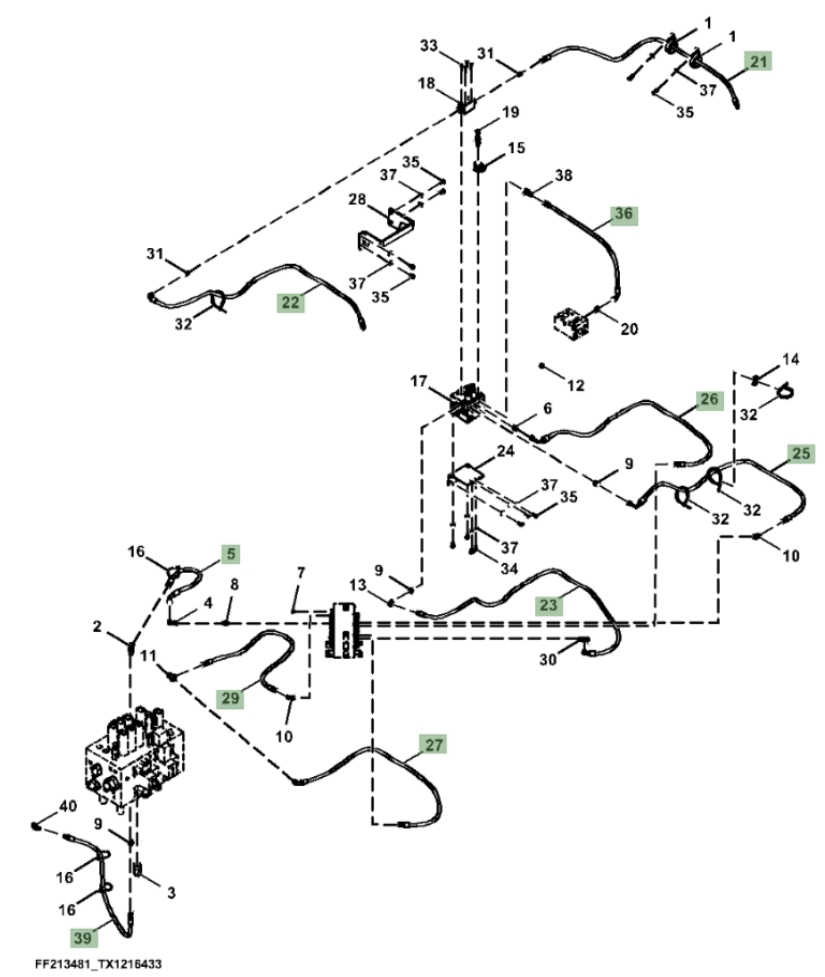

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 4453063 before removing the hose.

Hitachi ZX210F-FE-6N installation diagram showing hydraulic hose 4453063 at Pipe No. 5 — Hitachi ZX210F-FE-6NPart 4453063 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 4453063
Diagram pipe number: 5
Installation route: 中转接头~分配阀上
Hose specification: DN10;1SN-6;7Mpa
Finished length: 630 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 20

4713022

Installation route: 中转接头~过渡阀块(行走踏板)

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 13

4269832

Installation route: 过渡阀块(行走踏板)~进回油阀

Length: 400 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4707585

Installation route: 中转接头~过渡阀块(行走踏板)

Length: 2,100 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 17

4707581

Installation route: 中转接头~过渡阀块(行走踏板)

Length: 2,200 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 19

4713021

Installation route: 中转接头~过渡阀块(行走踏板)

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
