Individual hose record

KHJ2085 Hose Repair Specifications

Excavator · Case · CX135SR · Control Valve

Finished length600 mm

Locate this hose

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number KHJ2085 before removing the hose.

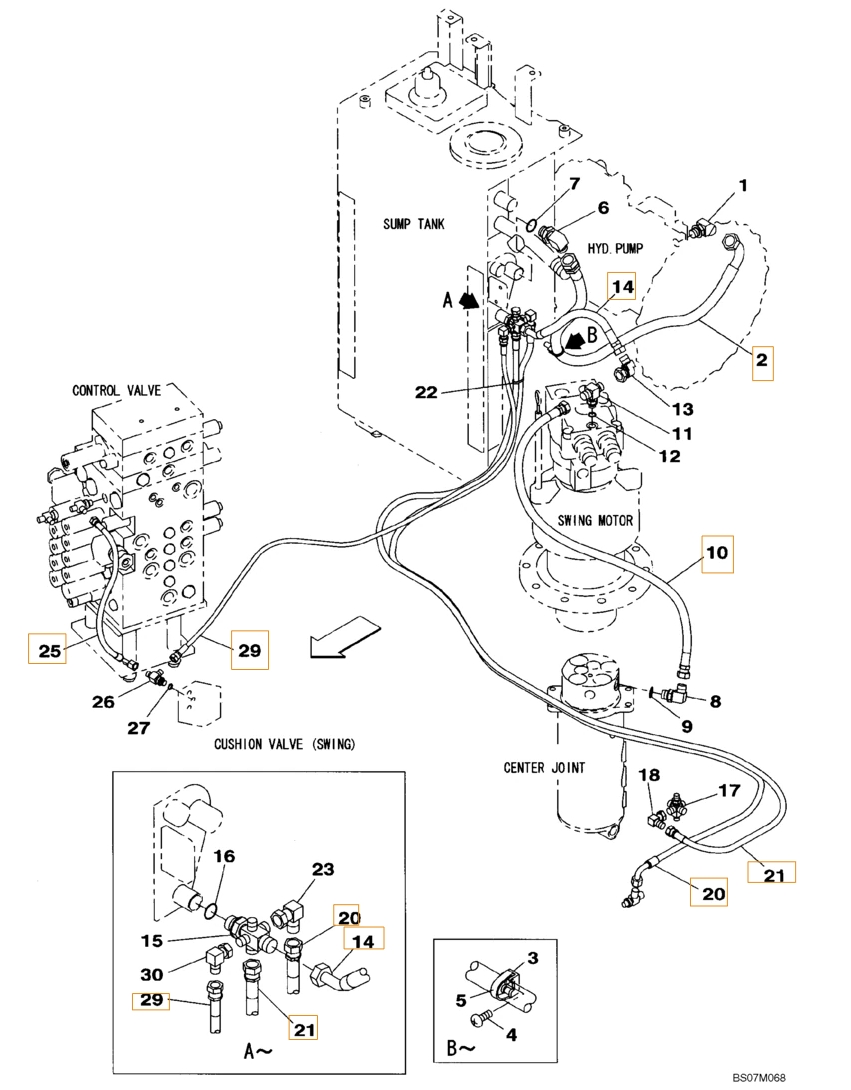

Case CX135SR installation diagram showing hydraulic hose KHJ2085 at Pipe No. 25 — **Case CX135SR**Part KHJ2085 · Pipe No. 25Open full-size diagram

Repair specifications

Part number: KHJ2085
Diagram pipe number: 25
Installation route: 分配阀左~缓冲阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 600 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
