Individual hose record

KAJ3619 Hose Repair Specifications

Excavator · Case · CX245D SR · Attachments – Breaker

Finished length950 mm

Locate this hose

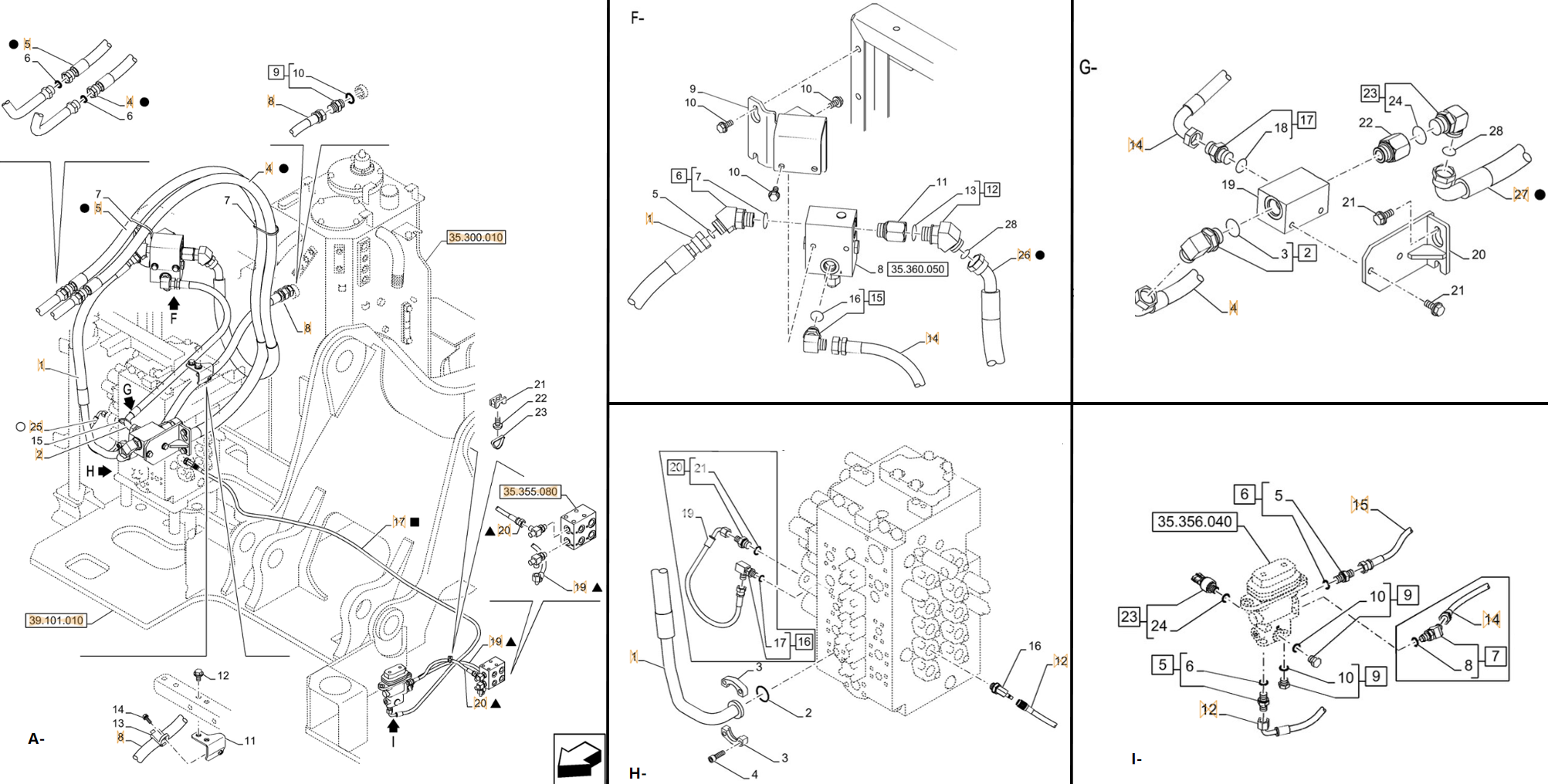

Installation diagram — Pipe No. A2-F14-G14

Locate Pipe No. A2-F14-G14 in the diagram, then confirm part number KAJ3619 before removing the hose.

Case CX245D SR installation diagram showing hydraulic hose KAJ3619 at Pipe No. A2-F14-G14 — **Case CX245D SR**Part KAJ3619 · Pipe No. A2-F14-G14Open full-size diagram

Repair specifications

Part number: KAJ3619
Diagram pipe number: A2-F14-G14
Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)
Hose specification: DN19;2SN-12;21.5MPa
Finished length: 950 mm
Working pressure: 21.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
