Individual hose record

2184-1045D104 Hose Repair Specifications

Excavator · Doosan · DX140LCR-3 · Grease Lines

Finished length2,400 mm

Locate this hose

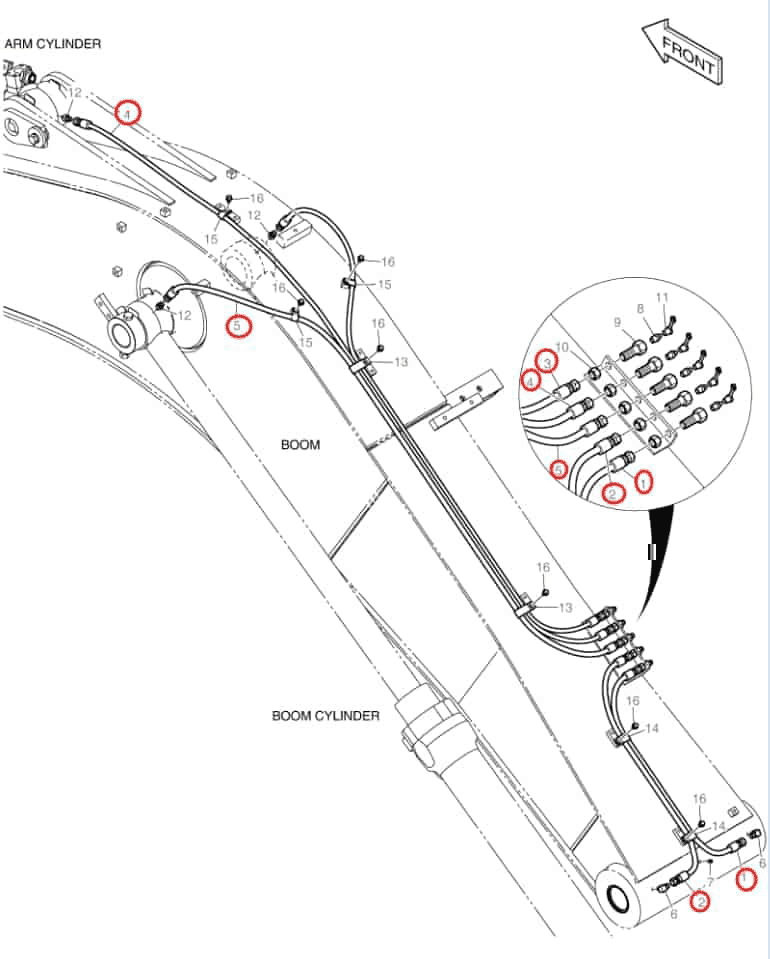

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 2184-1045D104 before removing the hose.

Part number: 2184-1045D104
Diagram pipe number: 4
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,400 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 5

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length: 1,890 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 4

Installation route: Two-piece boom grease lineOriginal Chinese: 分节大臂黄油管

Length: 1,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 7

Installation route: Two-piece boom grease lineOriginal Chinese: 分节大臂黄油管

Length: 1,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 2

Installation route: 左大臂座销黄油管

Length: 860 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 1

Installation route: 右大臂座销黄油管

Length: 780 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 3

Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管

Length: 1,850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
