Individual hose record
4640278 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Control Valve
Finished length470 mm
Locate this hose

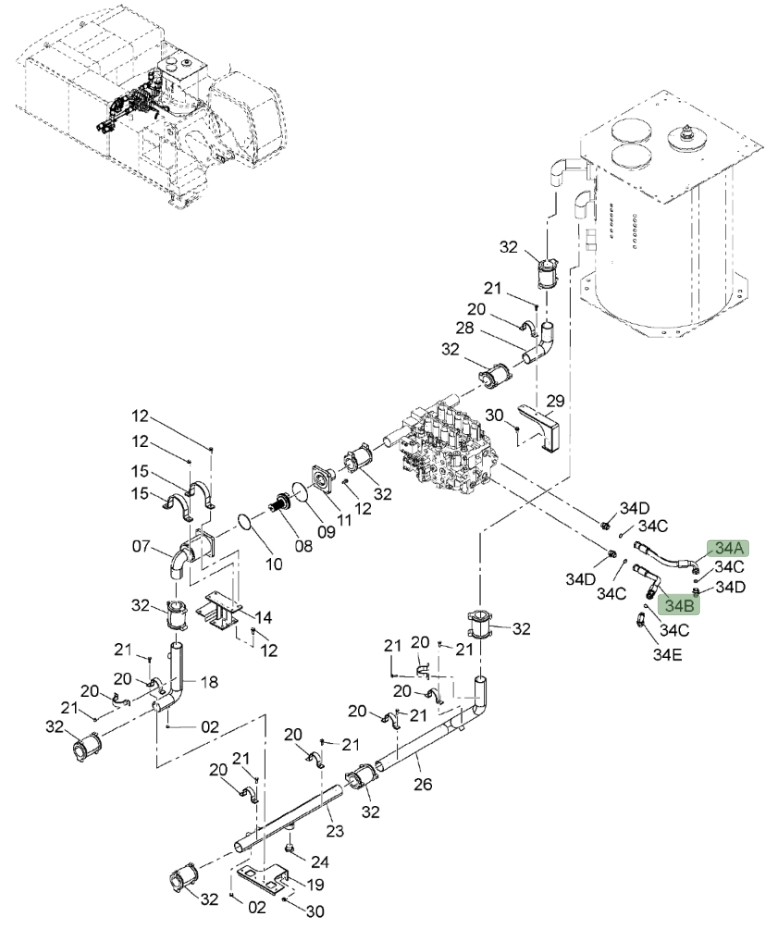

Installation diagram — Pipe No. 34A
Locate Pipe No. 34A in the diagram, then confirm part number 4640278 before removing the hose.
Repair specifications
- Part number
- 4640278
- Diagram pipe number
- 34A
- Installation route
- 分配阀前~回转马达(左)
- Hose specification
- DN25;2SN-16;16.5MPa
- Finished length
- 470 mm
- Working pressure
- 16.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
