Individual hose record
KHJ2692 Hose Repair Specifications
Excavator · Case · CX210N · Hydraulic Pump
Finished length2,700 mm
Locate this hose

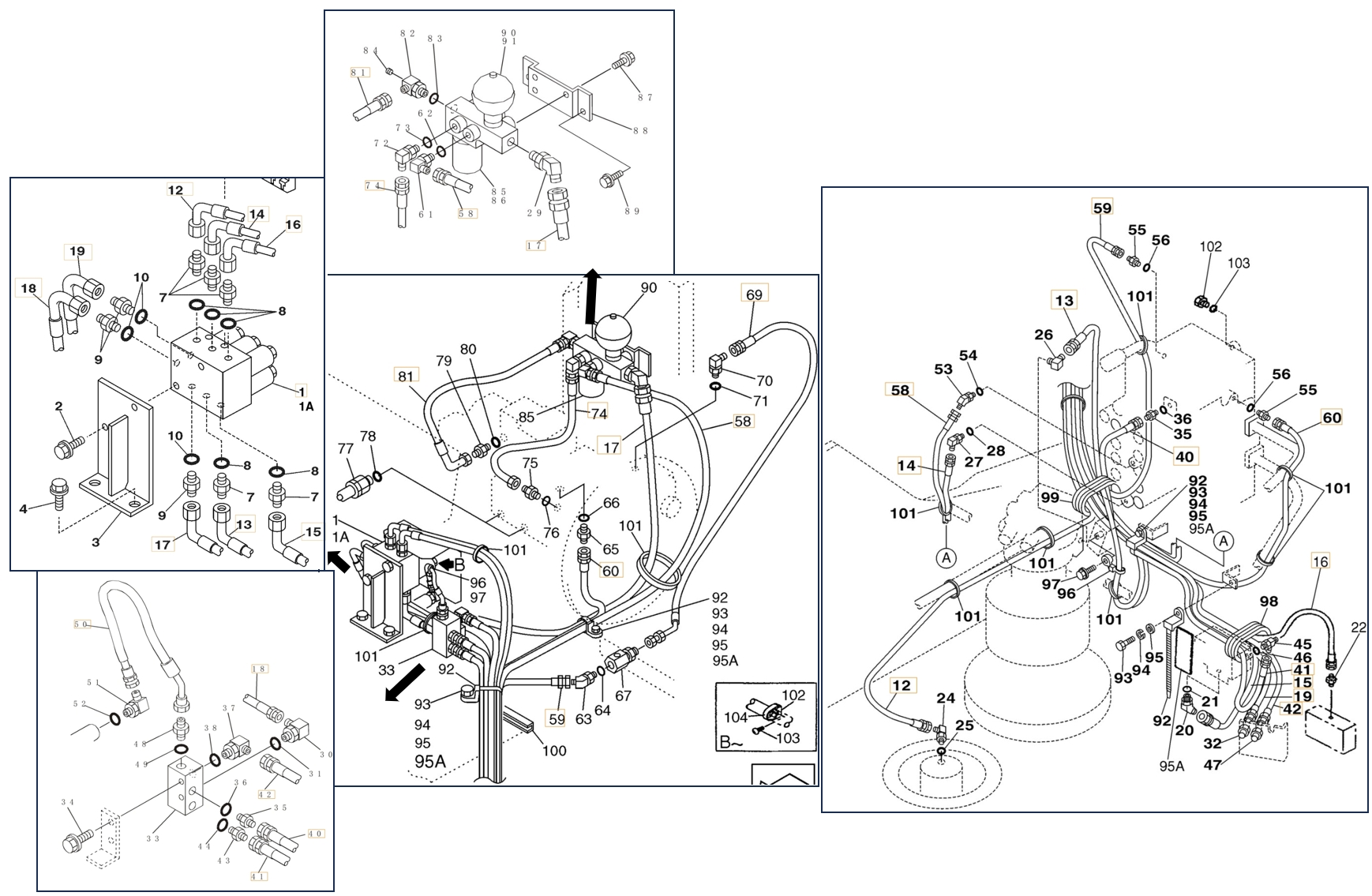

Installation diagram — Pipe No. 60
Locate Pipe No. 60 in the diagram, then confirm part number KHJ2692 before removing the hose.
Repair specifications
- Part number
- KHJ2692
- Diagram pipe number
- 60
- Installation route
- 液压泵右~分配阀左
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,700 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
