4648087 Hose Repair Specifications

Excavator · Hitachi · ZX870LC-5G · Pedal

Finished length430 mm

Locate this hose

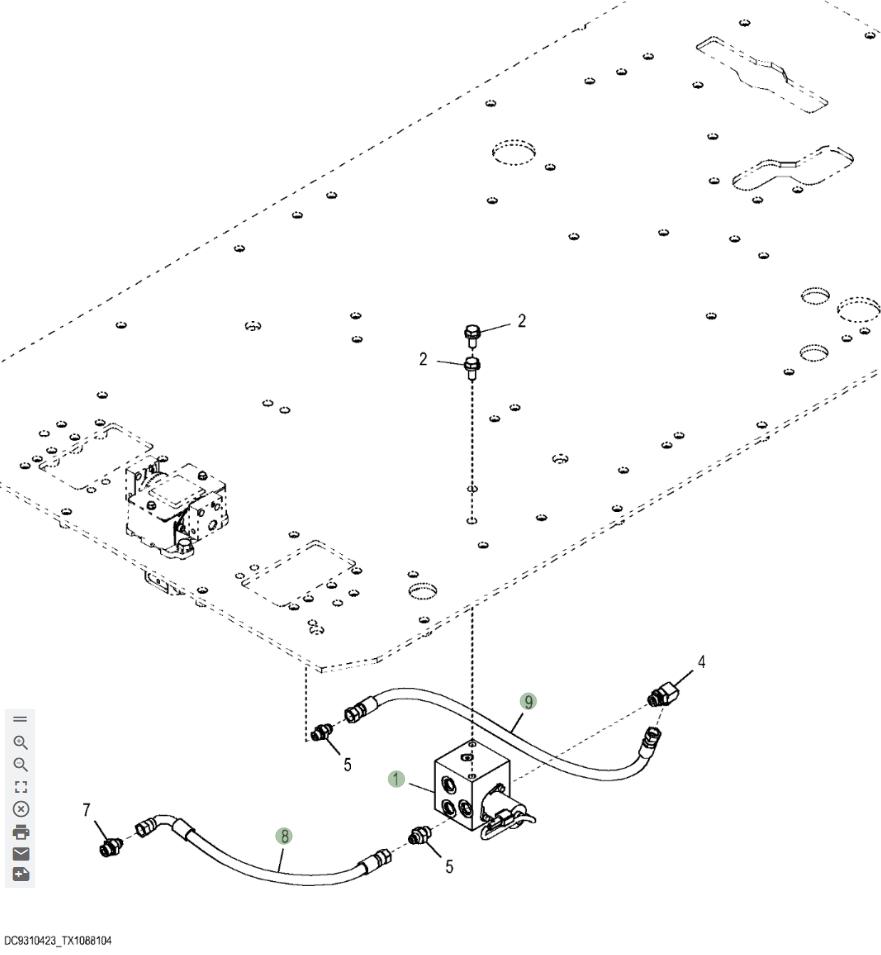

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4648087 before removing the hose.

Hitachi ZX870LC-5G installation diagram showing hydraulic hose 4648087 at Pipe No. 8 — Hitachi ZX870LC-5GPart 4648087 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4648087
Diagram pipe number: 8
Installation route: 行走踏板~进回油阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 430 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 9

4709482

Installation route: 行走踏板~进回油阀

Length: 600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
