4366894 Hose Repair Specifications

Excavator · Hitachi · ZX240 · Attachments

Finished length830 mm

Locate this hose

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4366894 before removing the hose.

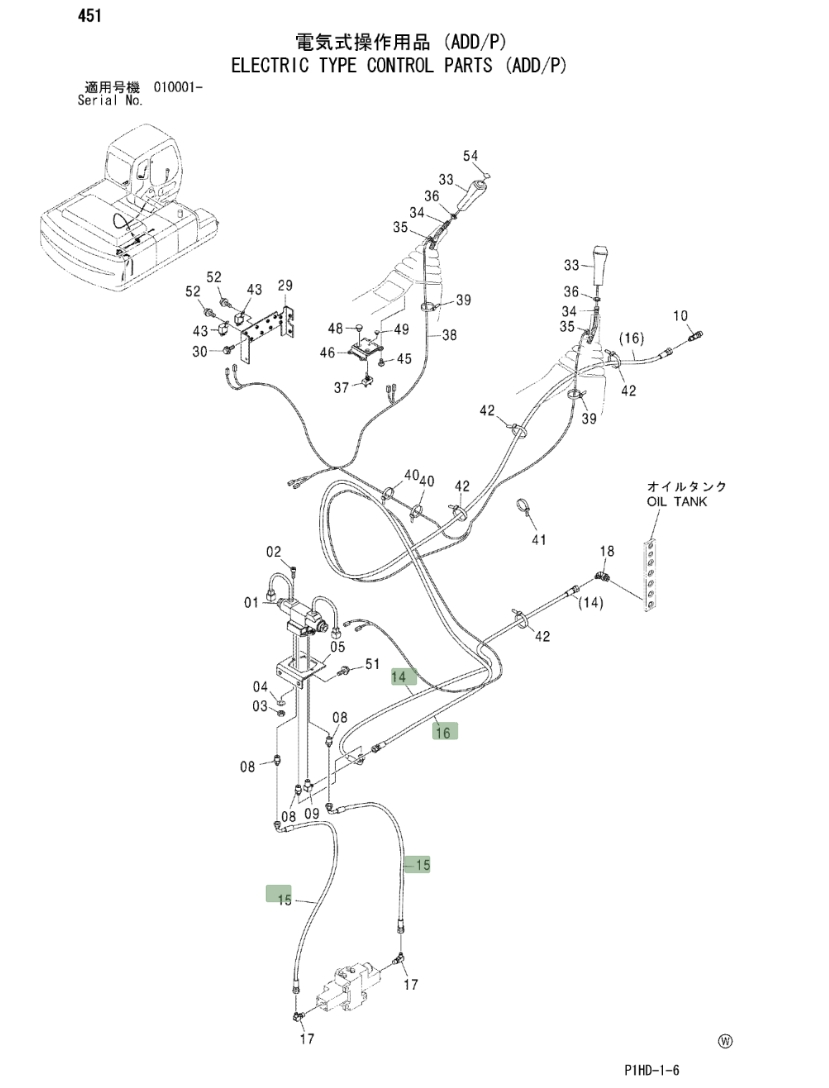

Hitachi ZX240 installation diagram showing hydraulic hose 4366894 at Pipe No. 15 — Hitachi ZX240Part 4366894 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 4366894
Diagram pipe number: 15
Installation route: 控制阀(辅助)~电磁阀(辅助)
Hose specification: DN6;1SN-4;7Mpa
Finished length: 830 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 2
