Individual hose record
4656788 Hose Repair Specifications
Excavator · Hitachi · ZX380LC-5N · Hydraulic Pump
Finished length850 mm
Locate this hose

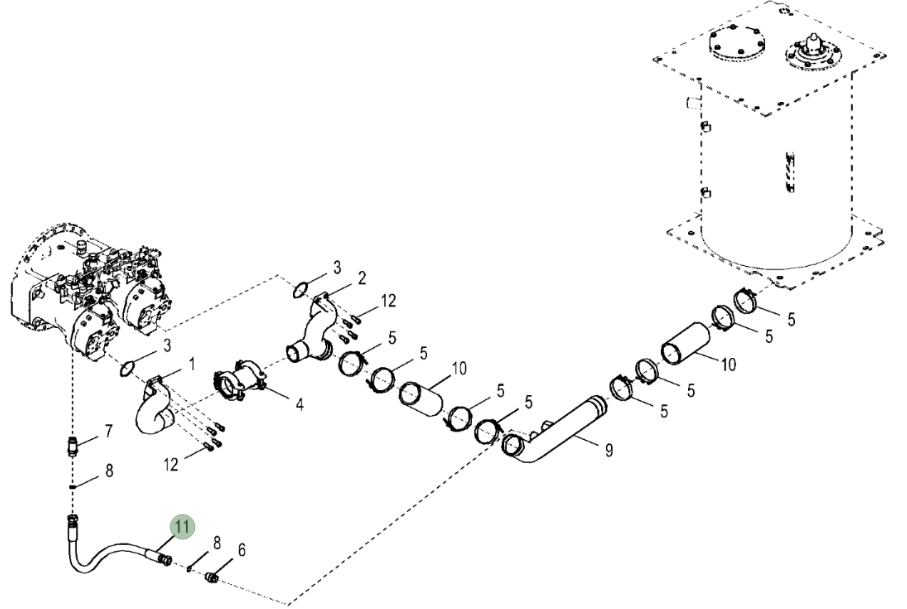

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4656788 before removing the hose.
Repair specifications
- Part number
- 4656788
- Diagram pipe number
- 11
- Installation route
- 液压泵~吸油铁管
- Hose specification
- DN19;1SN-12;10.5MPa
- Finished length
- 850 mm
- Working pressure
- 10.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
