Individual hose record

KHJ2097 Hose Repair Specifications

Excavator · Case · CX220C · Control Valve

Finished length1,750 mm

Locate this hose

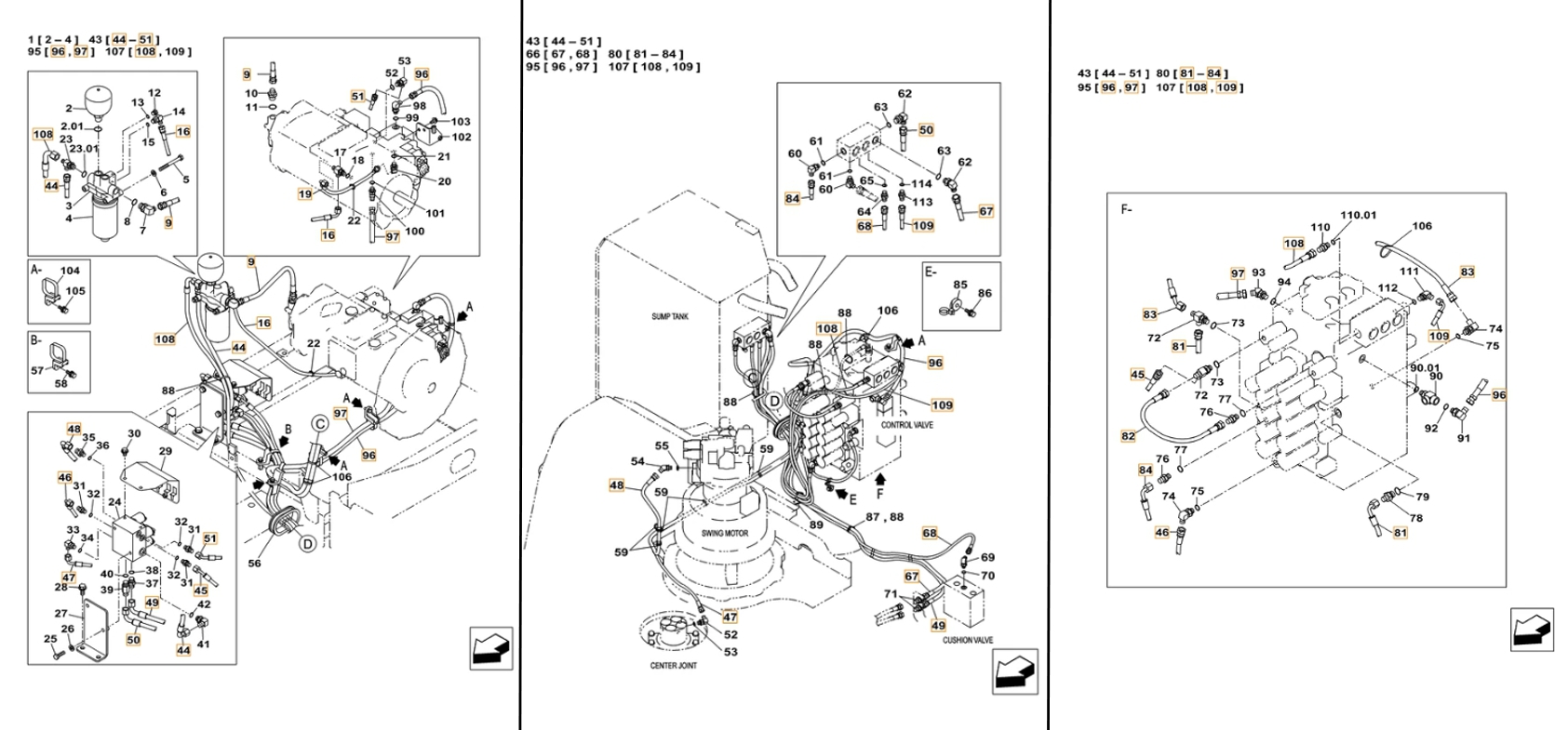

Installation diagram — Pipe No. 46

Locate Pipe No. 46 in the diagram, then confirm part number KHJ2097 before removing the hose.

Case CX220C installation diagram showing hydraulic hose KHJ2097 at Pipe No. 46 — **Case CX220C**Part KHJ2097 · Pipe No. 46Open full-size diagram

Repair specifications

Part number: KHJ2097
Diagram pipe number: 46
Installation route: 分配阀前~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,750 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
