Individual hose record
4366268 Hose Repair Specifications
Excavator · Hitachi · EX160LC-5 · Control Lever
Finished length1,750 mm
Locate this hose

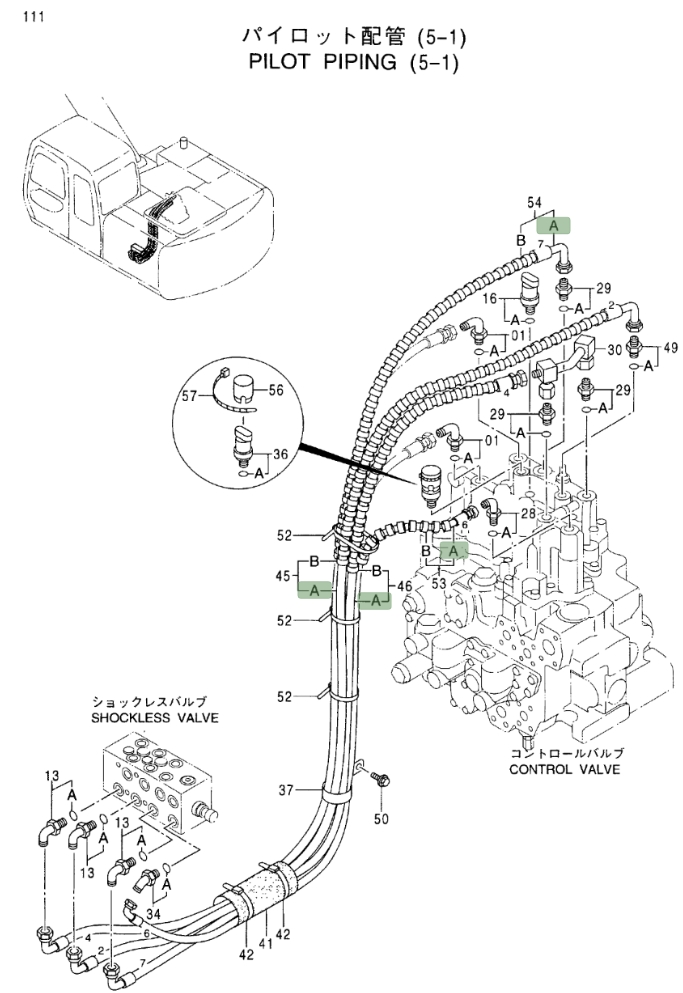

Installation diagram — Pipe No. 53A
Locate Pipe No. 53A in the diagram, then confirm part number 4366268 before removing the hose.
Repair specifications
- Part number
- 4366268
- Diagram pipe number
- 53A
- Installation route
- 中转接头~分配阀上
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 1,750 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
