Doosan DX140LCR Excavator Parts Manual
Page 138 · Fig. 1240 OIL COOLER PIPING(3)
View or download approved PDFIndividual hose record
2184-1036D118 Hose Repair Specifications
Excavator · Doosan · DX140LCR · Swing Motor
Finished length580 mm
Repair specifications
- Part number
- 2184-1036D118
- Diagram pipe number
- 12
- Installation route
- Swing motor → return steel line (hydraulic tank)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 580 mm
- Working pressure
- 16 MPa
- Left fitting
- British female thread, 60° external cone seat
- Right fitting
- 90° elbow, British female thread, 60° external cone seat
- Quantity
- 1
Reviewed PDF derivative
Installation Diagram and Current Hose Location

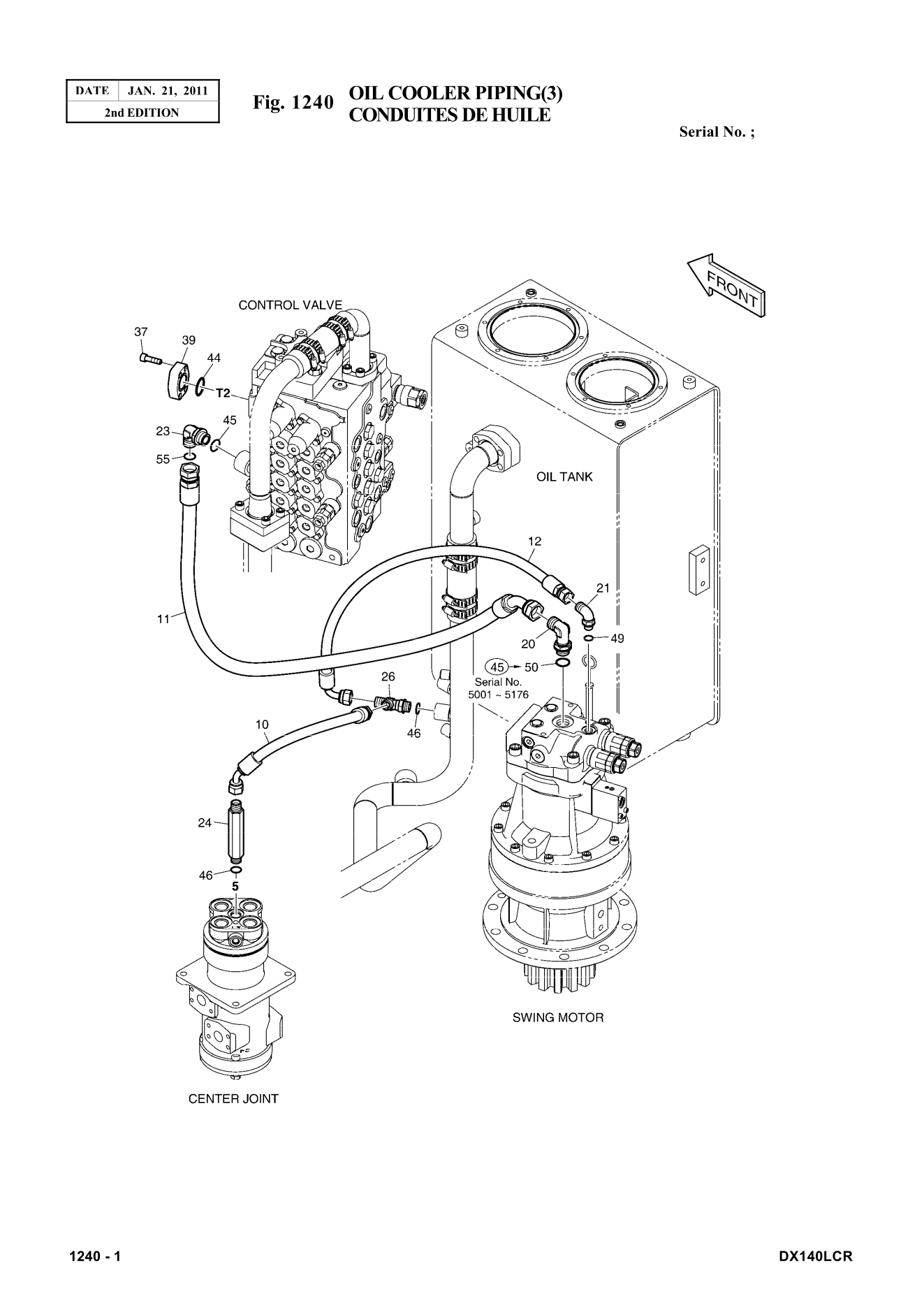

The red marker identifies this hose on our reviewed image derived from the cited PDF page.
