Individual hose record

KHJ2310 Hose Repair Specifications

Excavator · Case · CX130B · Control Valve

Finished length1,350 mm

Locate this hose

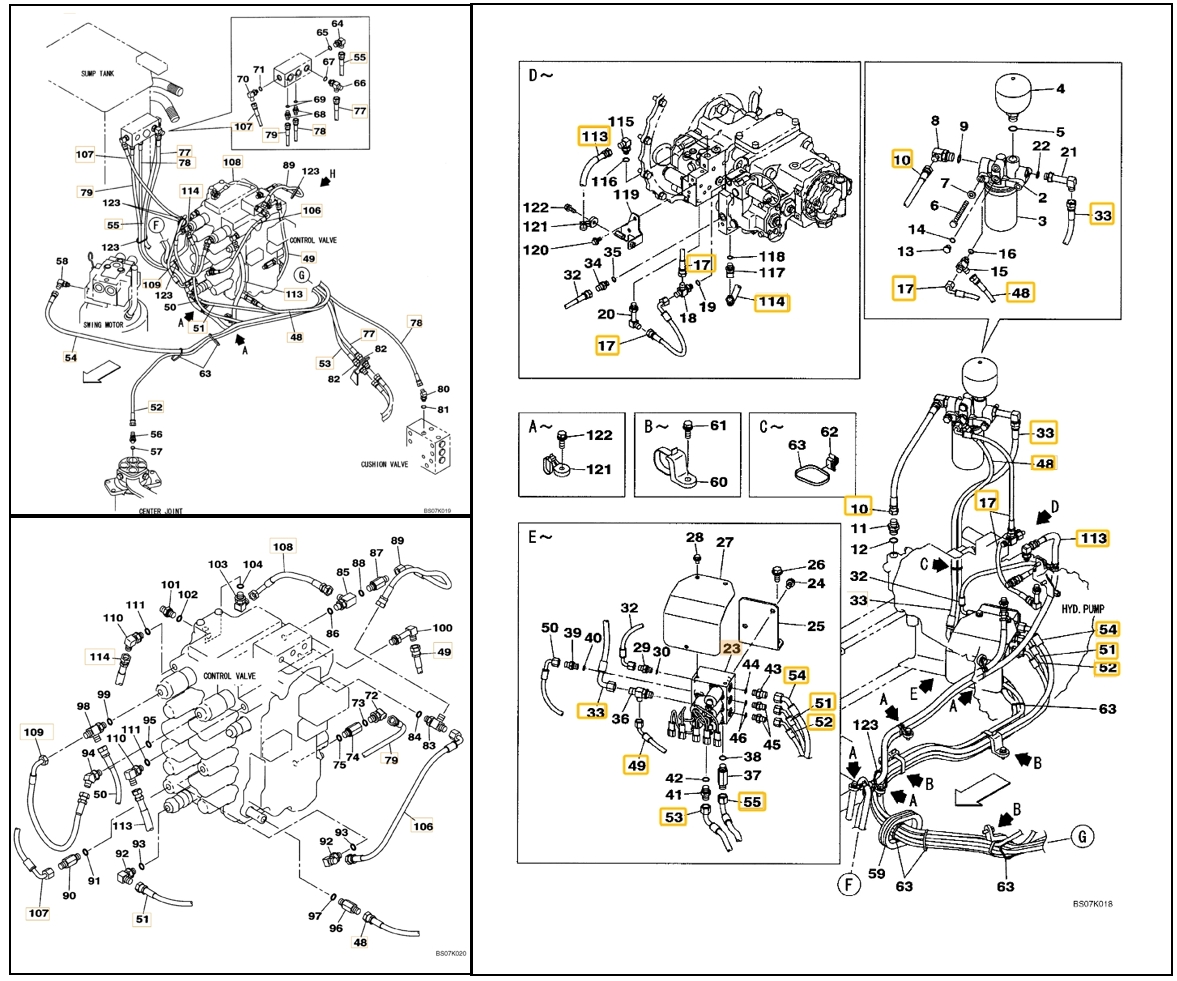

Installation diagram — Pipe No. 79

Locate Pipe No. 79 in the diagram, then confirm part number KHJ2310 before removing the hose.

Case CX130B installation diagram showing hydraulic hose KHJ2310 at Pipe No. 79 — **Case CX130B**Part KHJ2310 · Pipe No. 79Open full-size diagram

Repair specifications

Part number: KHJ2310
Diagram pipe number: 79
Installation route: 分配阀后~液压油箱歧管接块
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 48

KHJ2174

Installation route: 分配阀左~蓄能器

Length: 3,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 106

KHJ2342

Installation route: 分配阀左~分配阀左

Length: 380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 49

KHJ2525

Installation route: 分配阀后~电磁阀

Length: 2,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 17

KNJ14600

Installation route: 分配阀右~回转马达

Length: 370 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 107

KHJ2088

Installation route: 分配阀前~液压油箱歧管接块

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 37

KHJ2195

Installation route: 分配阀后~主阀回油铁管

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 130

KHJ13820

Installation route: 分配阀后~分配阀后

Length: 420 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 108

168806A1

Installation route: 分配阀右~分配阀后

Length: 230 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
