Individual hose record

730502001330 Hose Repair Specifications

Excavator · Sunward · SWE205E-3H · Attachments – Breaker

Finished length550 mm

Locate this hose

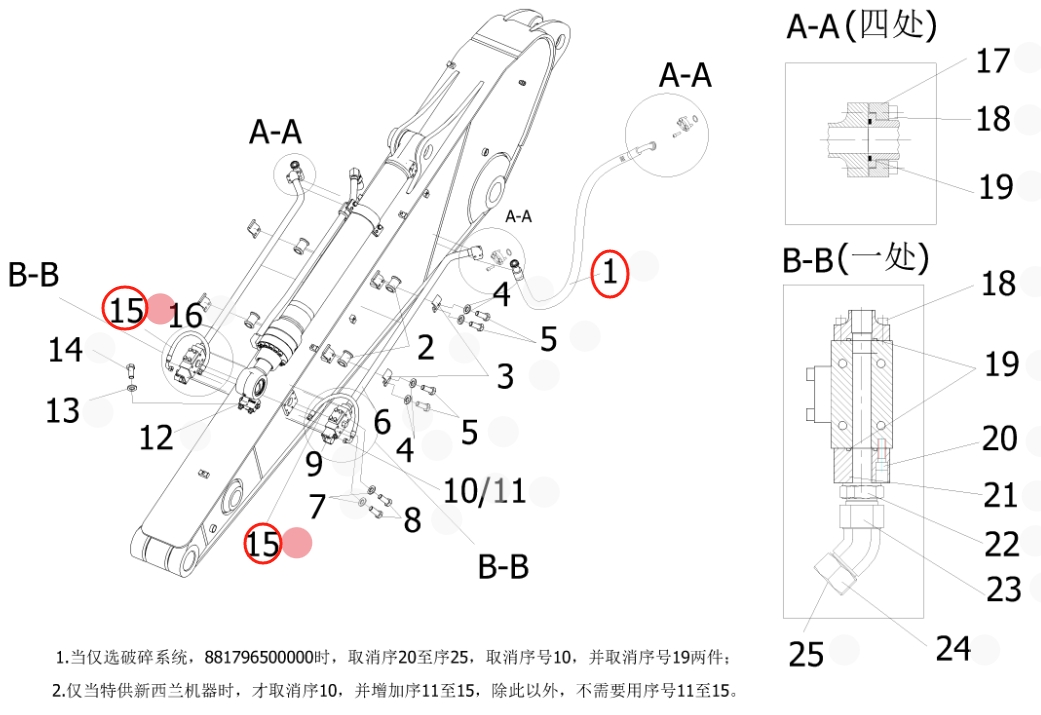

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 730502001330 before removing the hose.

Sunward SWE205E-3H installation diagram showing hydraulic hose 730502001330 at Pipe No. 15
Sunward SWE205E-3HPart 730502001330 · Pipe No. 15Open full-size diagram

Repair specifications

Part number
730502001330
Diagram pipe number
15
Installation route
小臂破碎器截止阀
Hose specification
DN10;2SN-06;35MPa
Finished length
550 mm
Working pressure
35 MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 5

730502000345

Installation route: 破碎器踏板YX2~分配阀左XAO

Length
800 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 9

730502001308

Installation route: 破碎器踏板YX2~分配阀左XAO

Length
1,900 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 2

730502003778

Installation route: 破碎器踏板~进回油阀

Length
340 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications
