DS2093034 Hose Repair Specifications

Excavator · Doosan · DX27Z · Attachments

Finished length1,500 mm

Locate this hose

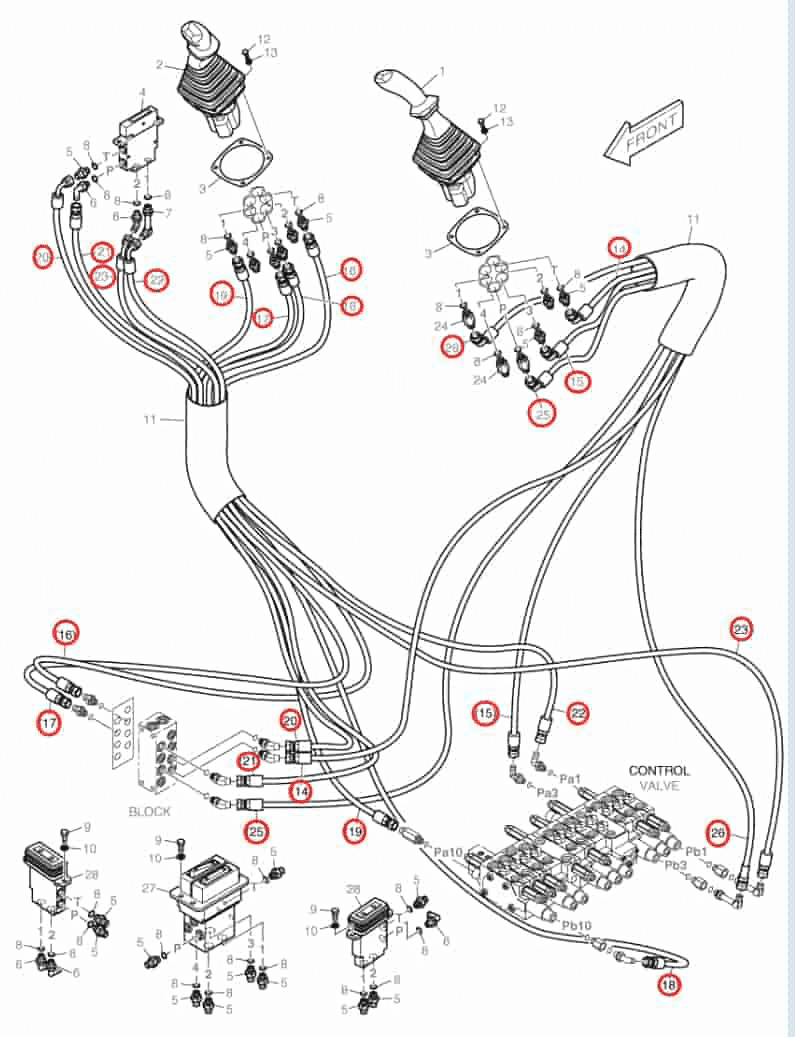

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number DS2093034 before removing the hose.

Part number: DS2093034
Diagram pipe number: 23
Installation route: 推土铲手柄2口~分配阀PB1口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 25

Installation route: 大臂摆动踏板T口~进回油阀

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 34

Installation route: 大臂摆动油缸2口~分配阀PA2口

Length: 530 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 20

Installation route: 推土铲手柄T口~进回油阀

Length: 1,980 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 33

Installation route: 大臂摆动油缸1口~分配阀PB2口

Length: 1,050 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
