- Length
- 580 mm
- Specification
- DN12;2SN-8;20.5MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
Individual hose record
4429713 Hose Repair Specifications
Excavator · Hitachi · ZX27U · Attachments – Breaker
Finished length600 mm
Locate this hose

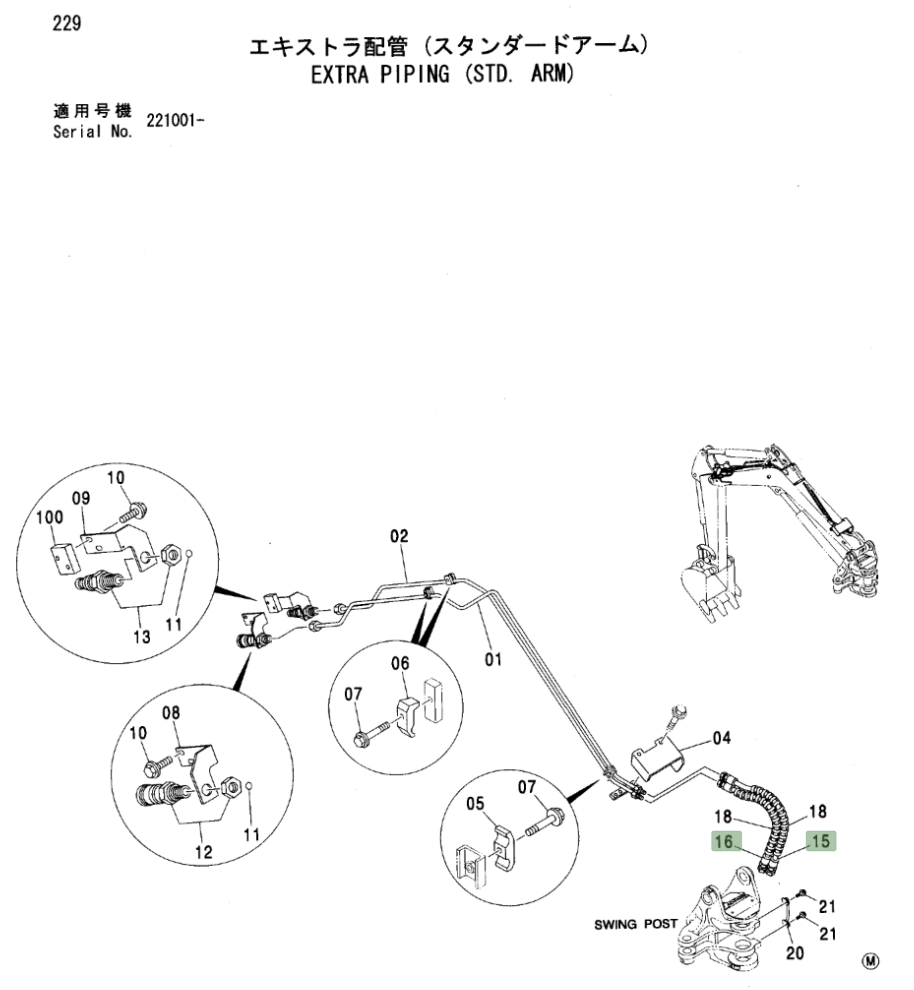

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4429713 before removing the hose.
Repair specifications
- Part number
- 4429713
- Diagram pipe number
- 15
- Installation route
- 大臂(破碎器)~过渡阀块(破碎器)
- Hose specification
- DN12;2SN-8;20.5MPa
- Finished length
- 600 mm
- Working pressure
- 20.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
