Individual hose record

4388835 Hose Repair Specifications

Excavator · Hitachi · EX80-5 · Boom Assembly

Finished length750 mm

Locate this hose

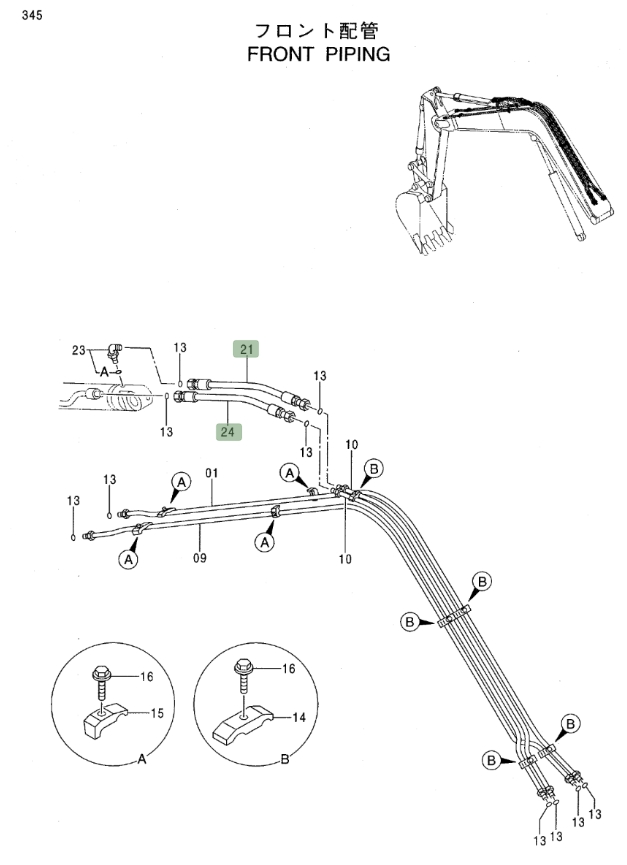

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 4388835 before removing the hose.

Part number: 4388835
Diagram pipe number: 24
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 750 mm
Working pressure: 41.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 20

Installation route: 小臂油缸

Length: 700 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 21

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 700 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
