Individual hose record
KTJ1639 Hose Repair Specifications
Excavator · Case · CX330 · Attachments – Lock Valve
Finished length750 mm
Locate this hose

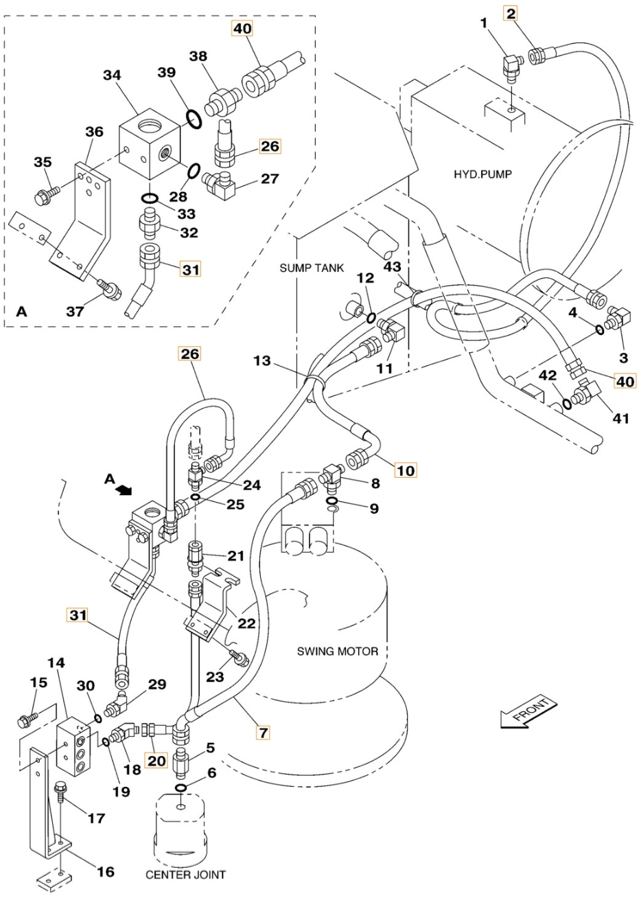

Installation diagram — Pipe No. 26
Locate Pipe No. 26 in the diagram, then confirm part number KTJ1639 before removing the hose.
Repair specifications
- Part number
- KTJ1639
- Diagram pipe number
- 26
- Installation route
- 溢流阀块~接头(三通)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 750 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
