Individual hose record
DS2062026 Hose Repair Specifications
Excavator · Doosan · DX63-3 · Hydraulic Tank
Finished length740 mm
Locate this hose

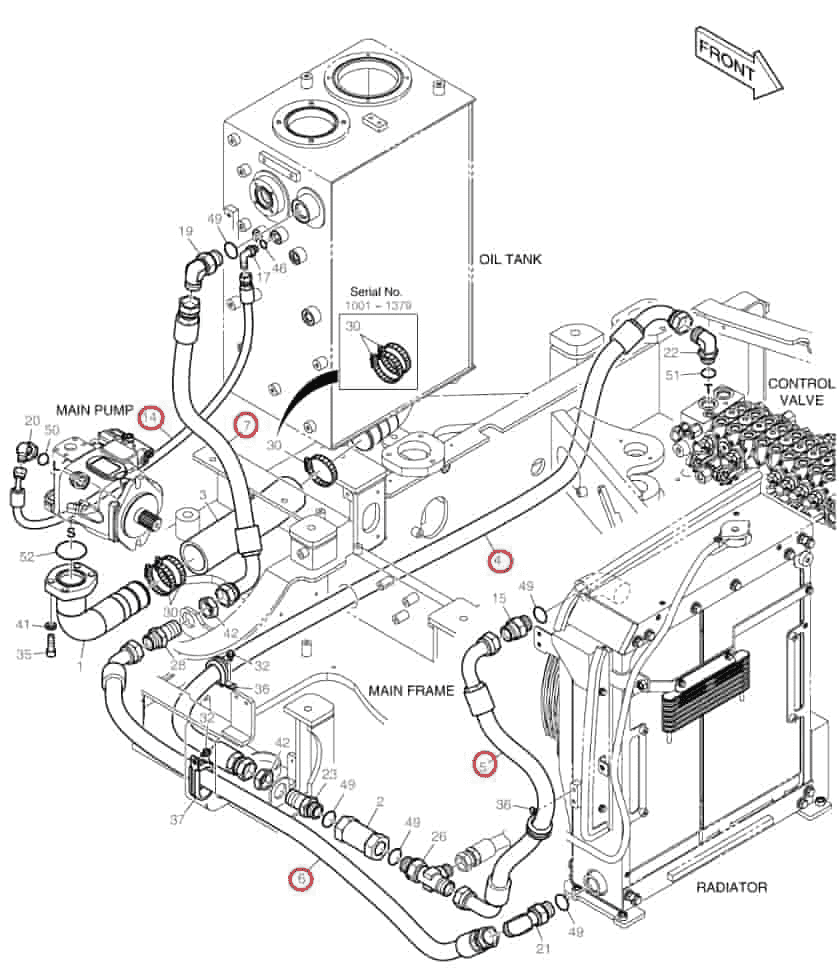

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number DS2062026 before removing the hose.
Repair specifications
- Part number
- DS2062026
- Diagram pipe number
- 7
- Installation route
- 液压油箱~过渡接头(散热器)
- Hose specification
- DN25;1SN-16;8.8MPa
- Finished length
- 740 mm
- Working pressure
- 8.8 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 75°英制内螺纹60°外锥
- Quantity
- 1
