Individual hose record
4644709 Hose Repair Specifications
Excavator · Hitachi · ZX190W-6N · Boom Assembly
Finished length1,350 mm
Locate this hose

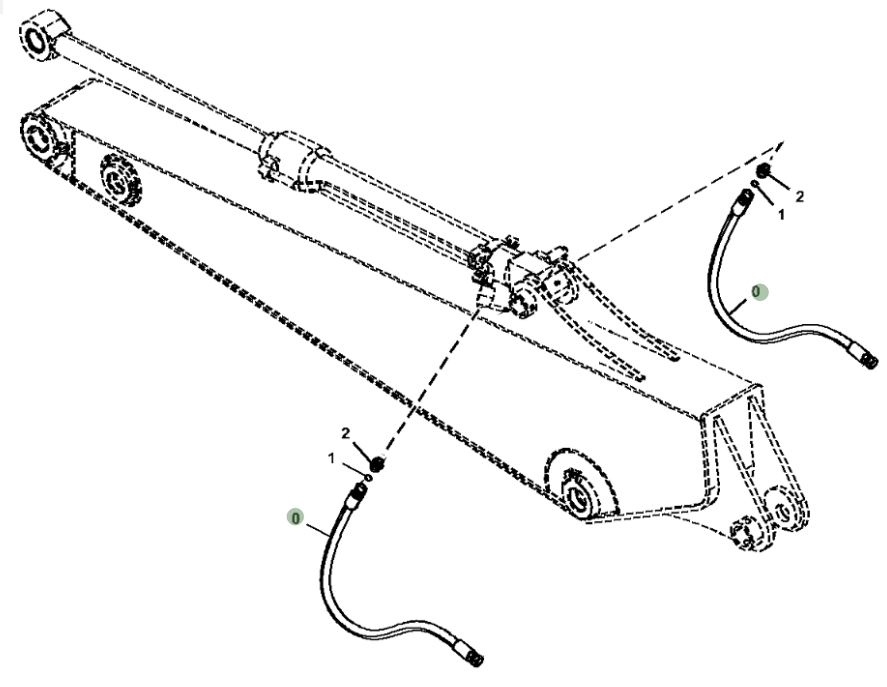

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4644709 before removing the hose.
Repair specifications
- Part number
- 4644709
- Diagram pipe number
- 0
- Installation route
- Bucket cylinderOriginal Chinese: 铲斗油缸
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 1,350 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
