Individual hose record
4445714 Hose Repair Specifications
Excavator · Hitachi · ZX160LC · Hydraulic Tank
Finished length370 mm
Locate this hose

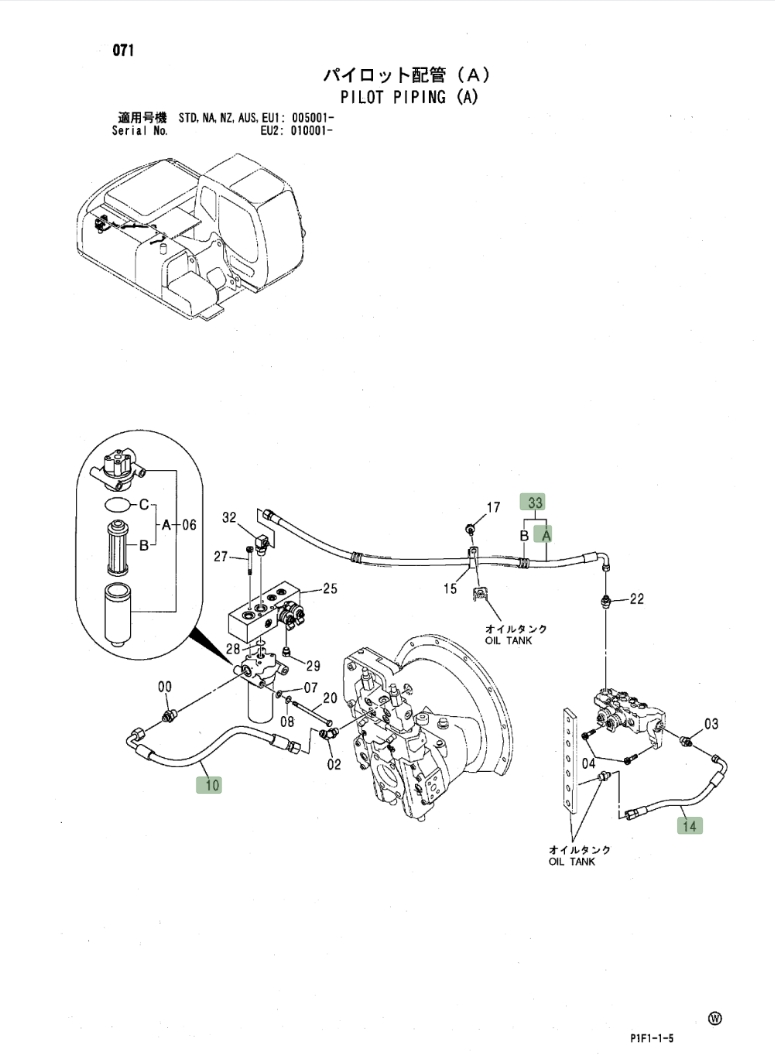

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4445714 before removing the hose.
Repair specifications
- Part number
- 4445714
- Diagram pipe number
- 14
- Installation route
- 液压油箱~电磁阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 370 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
