Individual hose record
4393601 Hose Repair Specifications
Excavator · Hitachi · ZX17U-5N · Pedal
Finished length430 mm
Locate this hose

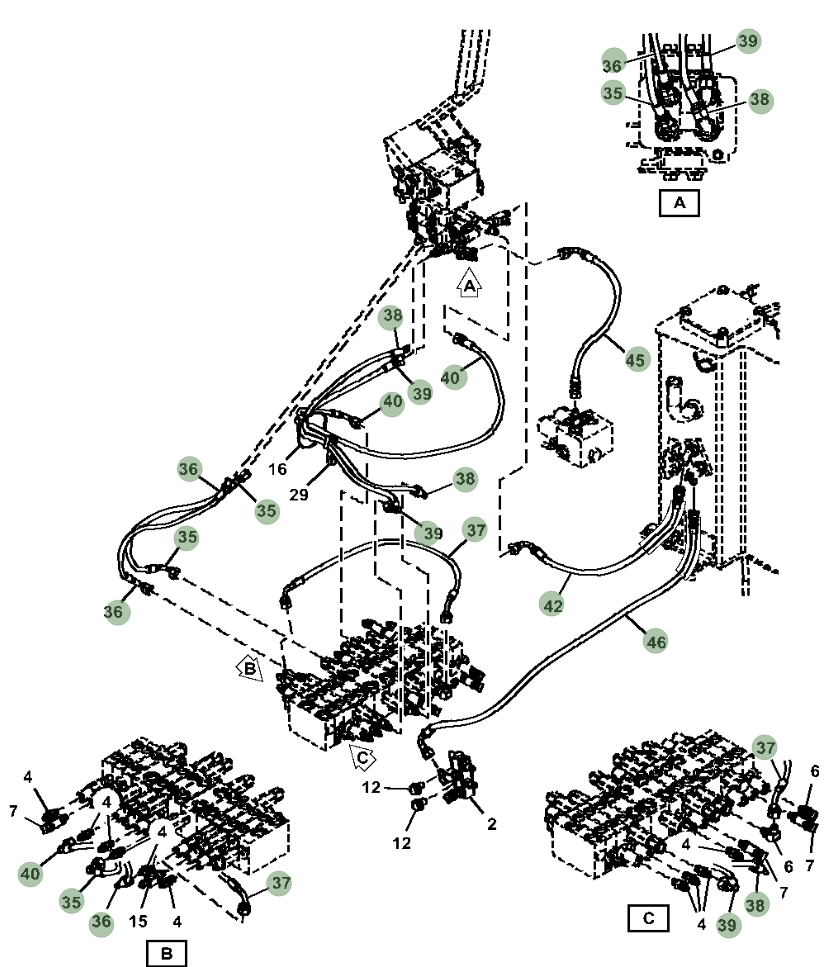

Installation diagram — Pipe No. 42
Locate Pipe No. 42 in the diagram, then confirm part number 4393601 before removing the hose.
Repair specifications
- Part number
- 4393601
- Diagram pipe number
- 42
- Installation route
- 行走推杆~液压油箱
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 430 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
