Individual hose record

163805A1 Hose Repair Specifications

Excavator · Case · CX240C-8 · Swivel Joint

Finished length900 mm

Locate this hose

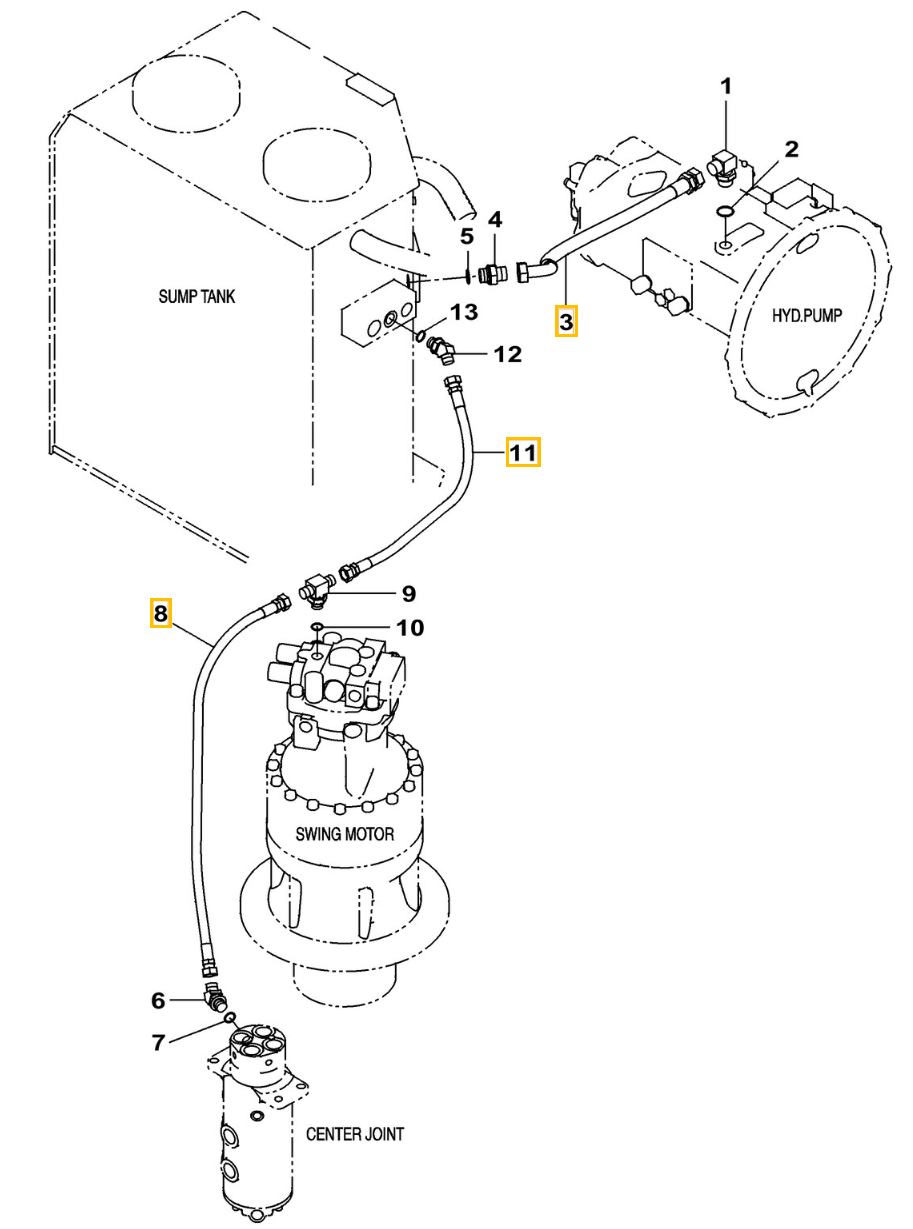

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 163805A1 before removing the hose.

Part number: 163805A1
Diagram pipe number: 8
Installation route: 回转接头~回转马达(回油)
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 900 mm
Working pressure: 27.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 11

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,150 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 11

Installation route: 回转接头~分配阀

Length: 820 mm
Specification: DN19;4SP-12;35MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 48

Installation route: 回转接头~电磁阀

Length: 2,350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
