Individual hose record

DS2053748 Hose Repair Specifications

Excavator · Doosan · DX85R-3 · Hydraulic Tank

Finished length1,800 mm

Locate this hose

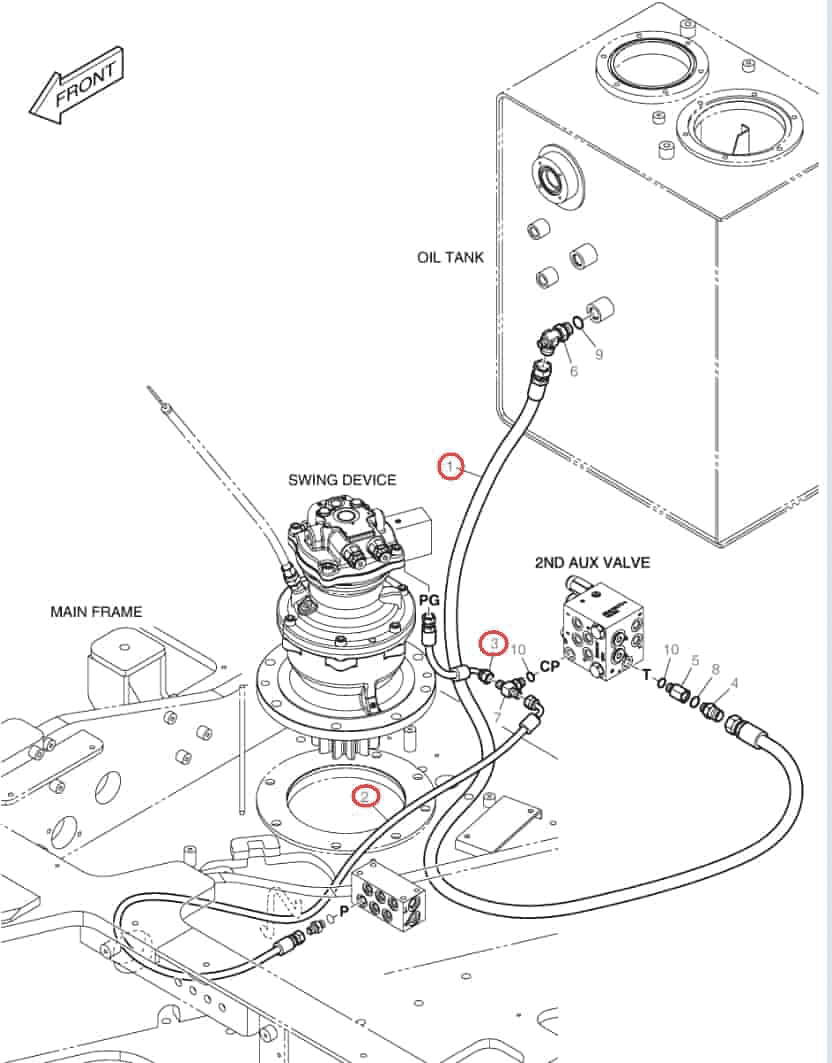

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number DS2053748 before removing the hose.

Part number: DS2053748
Diagram pipe number: 1
Installation route: 液压油箱~控制阀T口
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,800 mm
Working pressure: 16 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 17

Installation route: 液压油箱~电磁阀T1口

Length: 820 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 12

Installation route: 液压油箱~铁管(散热器)

Length: 2,730 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 1

Installation route: 液压油箱~控制阀T口

Length: 1,770 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 11

Installation route: 液压油箱~散热器下

Length: 1,950 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
