Individual hose record
4331603 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-5B · Control Valve
Finished length1,500 mm
Locate this hose

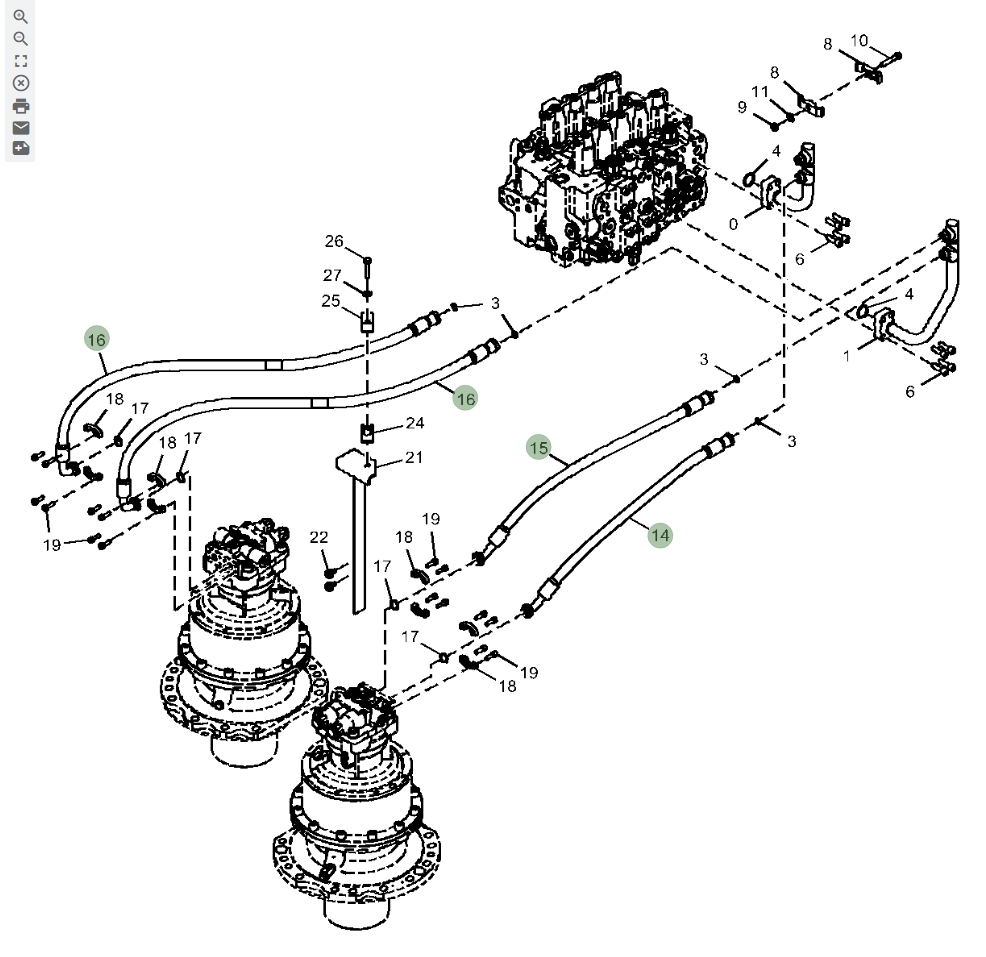

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4331603 before removing the hose.
Repair specifications
- Part number
- 4331603
- Diagram pipe number
- 16
- Installation route
- 分配阀左~回转马达(右)
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 1,500 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 2
