Individual hose record
4343708 Hose Repair Specifications
Excavator · Hitachi · EX750-5 · Engine Oil Lines
Finished length180 mm
Locate this hose

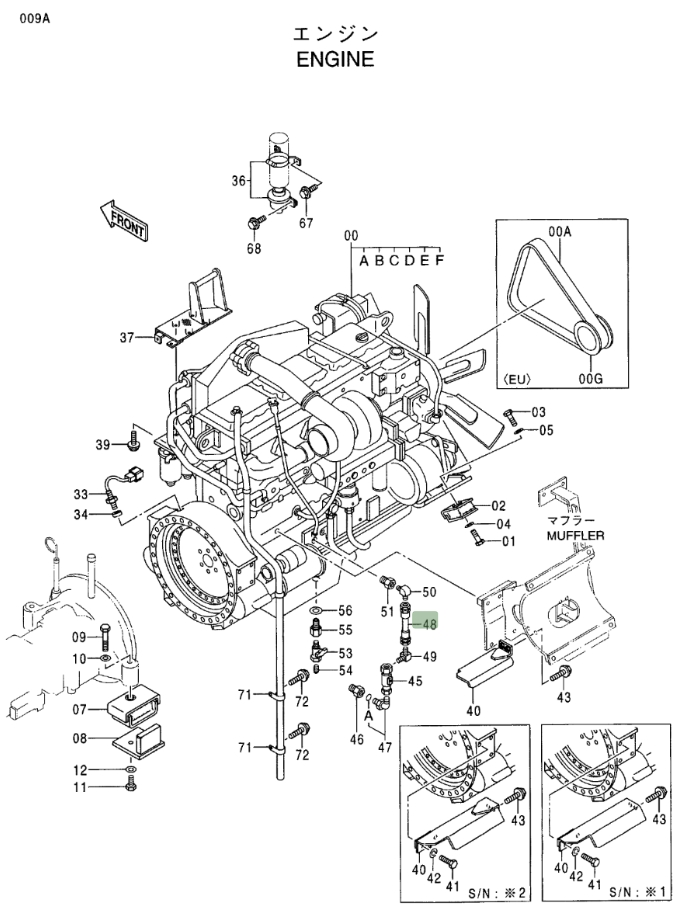

Installation diagram — Pipe No. 48
Locate Pipe No. 48 in the diagram, then confirm part number 4343708 before removing the hose.
Repair specifications
- Part number
- 4343708
- Diagram pipe number
- 48
- Installation route
- 机油管
- Hose specification
- DN10;1SN-6;2MPa
- Finished length
- 180 mm
- Working pressure
- 2 MPa
- Left fitting
- 英制内螺纹30°内锥
- Right fitting
- 英制内螺纹30°内锥
- Quantity
- 1
