Individual hose record

KHJ2394 Hose Repair Specifications

Excavator · Case · CX350D LC · Control Valve

Finished length550 mm

Locate this hose

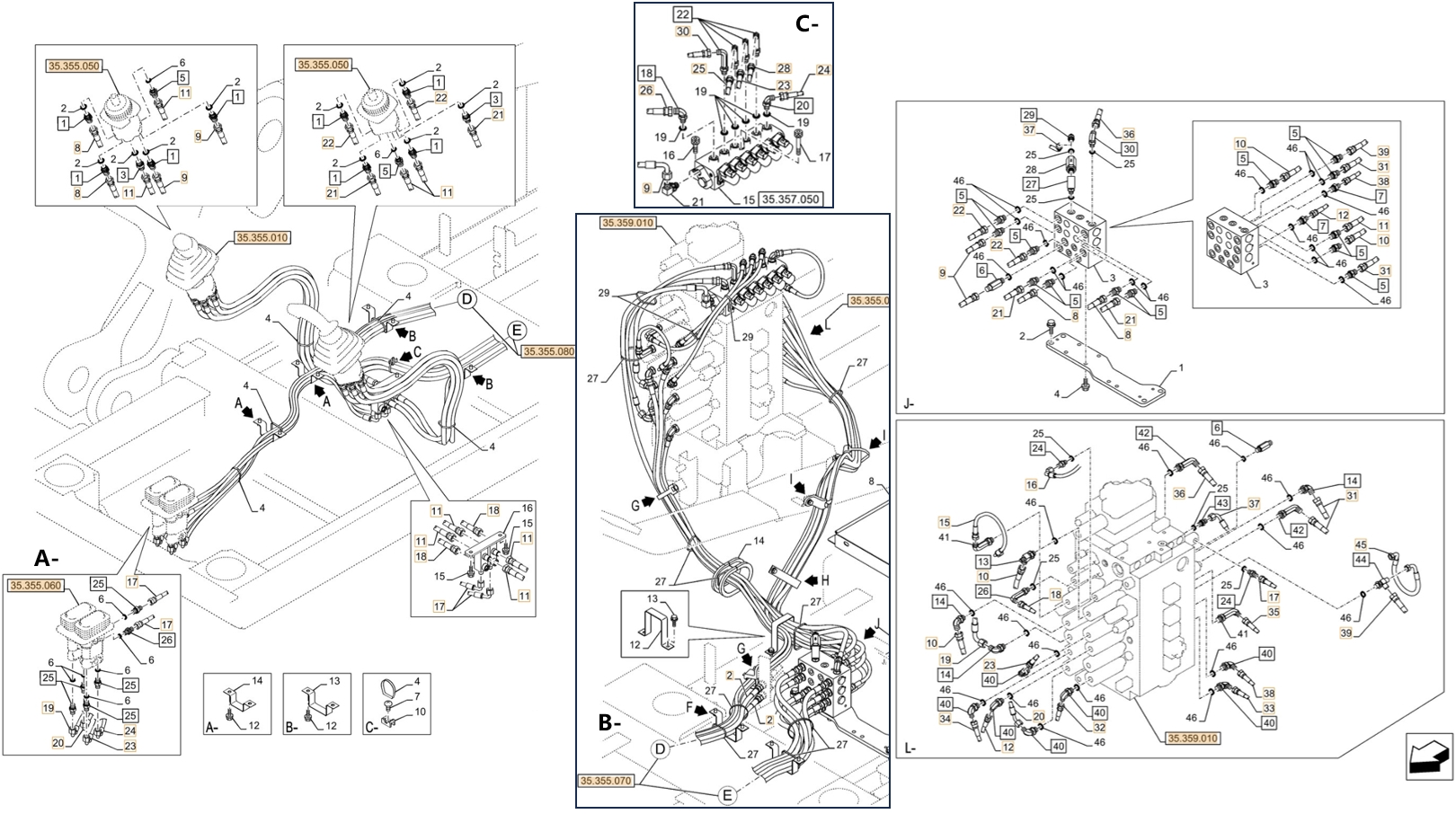

Installation diagram — Pipe No. C25-L18

Locate Pipe No. C25-L18 in the diagram, then confirm part number KHJ2394 before removing the hose.

Case CX350D LC installation diagram showing hydraulic hose KHJ2394 at Pipe No. C25-L18 — **Case CX350D LC**Part KHJ2394 · Pipe No. C25-L18Open full-size diagram

Repair specifications

Part number: KHJ2394
Diagram pipe number: C25-L18
Installation route: 分配阀前右~电磁阀(分配阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 550 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
