4627868 Hose Repair Specifications

Excavator · Hitachi · ZX245USLC-5N · Control Valve

Finished length300 mm

Locate this hose

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4627868 before removing the hose.

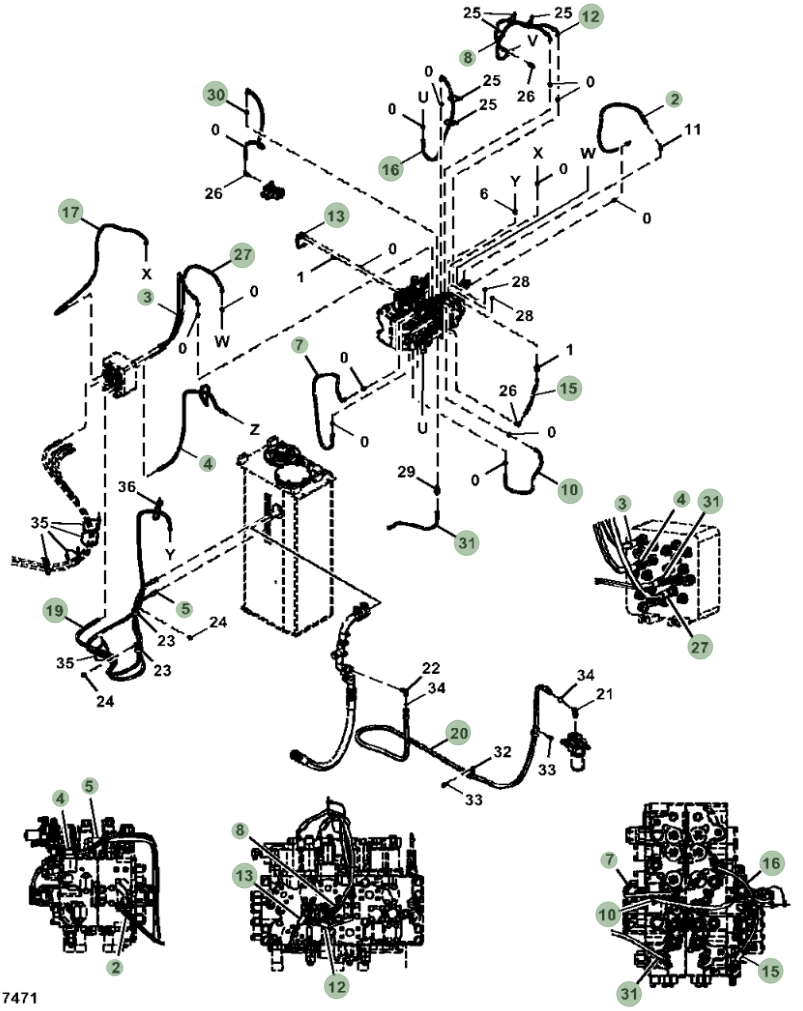

Hitachi ZX245USLC-5N installation diagram showing hydraulic hose 4627868 at Pipe No. 13 — Hitachi ZX245USLC-5NPart 4627868 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4627868
Diagram pipe number: 13
Installation route: 分配阀左~分配阀左
Hose specification: DN6;1SN-04;7Mpa
Finished length: 300 mm
Working pressure: 7 MPa
Left fitting: 90°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
