- Length
- 1,000 mm
- Specification
- DN19;4SP-12;35MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 英制外螺纹平面密封
Individual hose record
KRJ5760 Hose Repair Specifications
Excavator · Case · CX230 · Boom Assembly
Finished length790 mm
Locate this hose

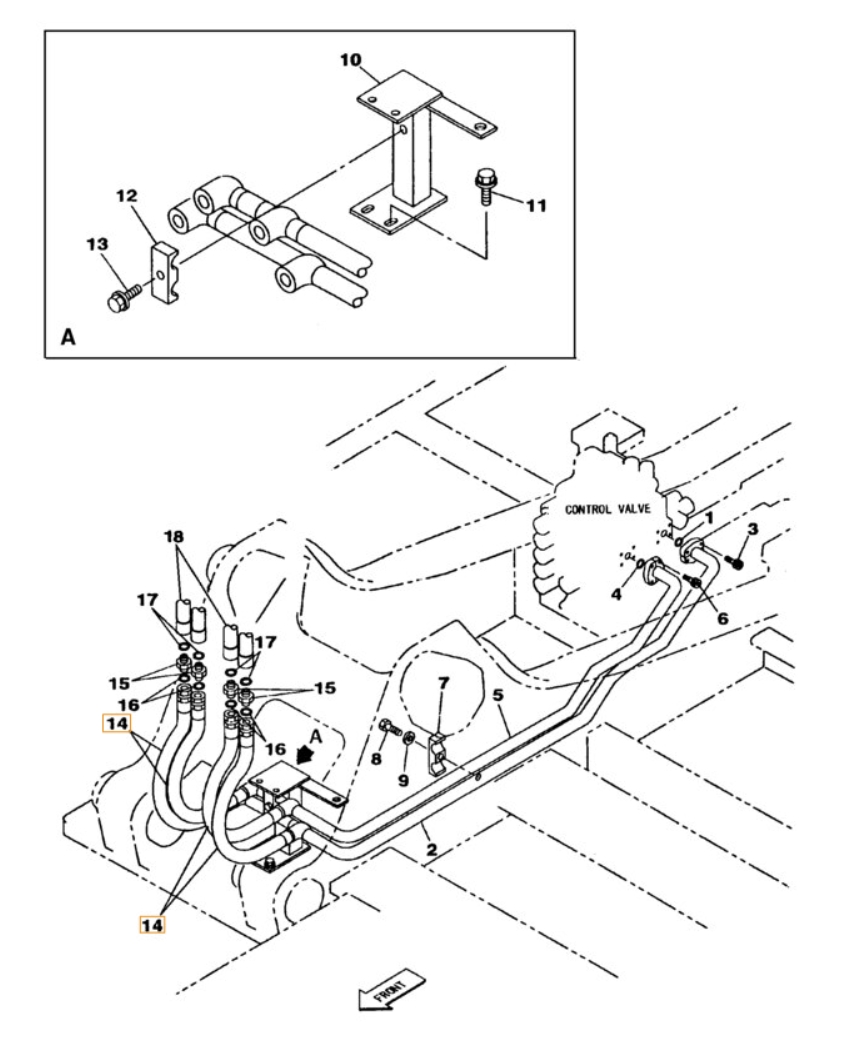

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number KRJ5760 before removing the hose.
Repair specifications
- Part number
- KRJ5760
- Diagram pipe number
- 14
- Installation route
- 大臂油缸
- Hose specification
- DN19;4SP-12;35MPa
- Finished length
- 790 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 英制外螺纹平面密封
- Quantity
- 4
