- Length
- 780 mm
- Specification
- DN25;4SP-16;32Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
4219319 Hose Repair Specifications
Excavator · Hitachi · EX270LC · Boom Assembly
Finished length810 mm
Locate this hose

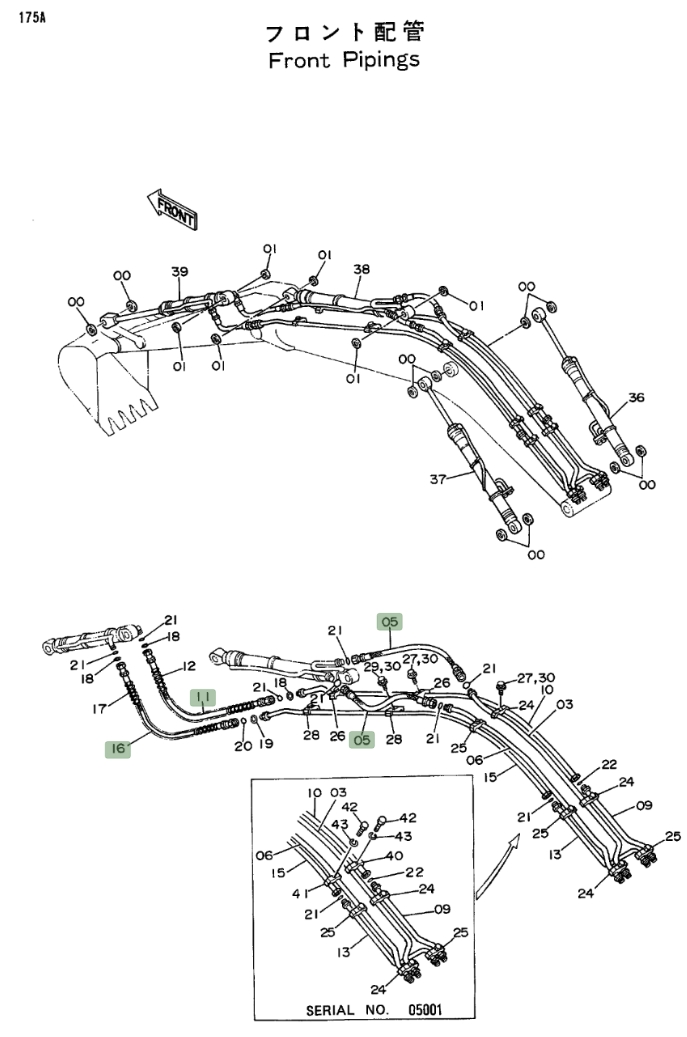

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4219319 before removing the hose.
Repair specifications
- Part number
- 4219319
- Diagram pipe number
- 5
- Installation route
- 小臂油缸
- Hose specification
- DN25;4SP-16;32Mpa
- Finished length
- 810 mm
- Working pressure
- 32 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
