- Length
- 2,400 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
Individual hose record
730502000390 Hose Repair Specifications
Excavator · Sunward · SWE400E-3H · Hydraulic Pump
Finished length2,900 mm
Locate this hose

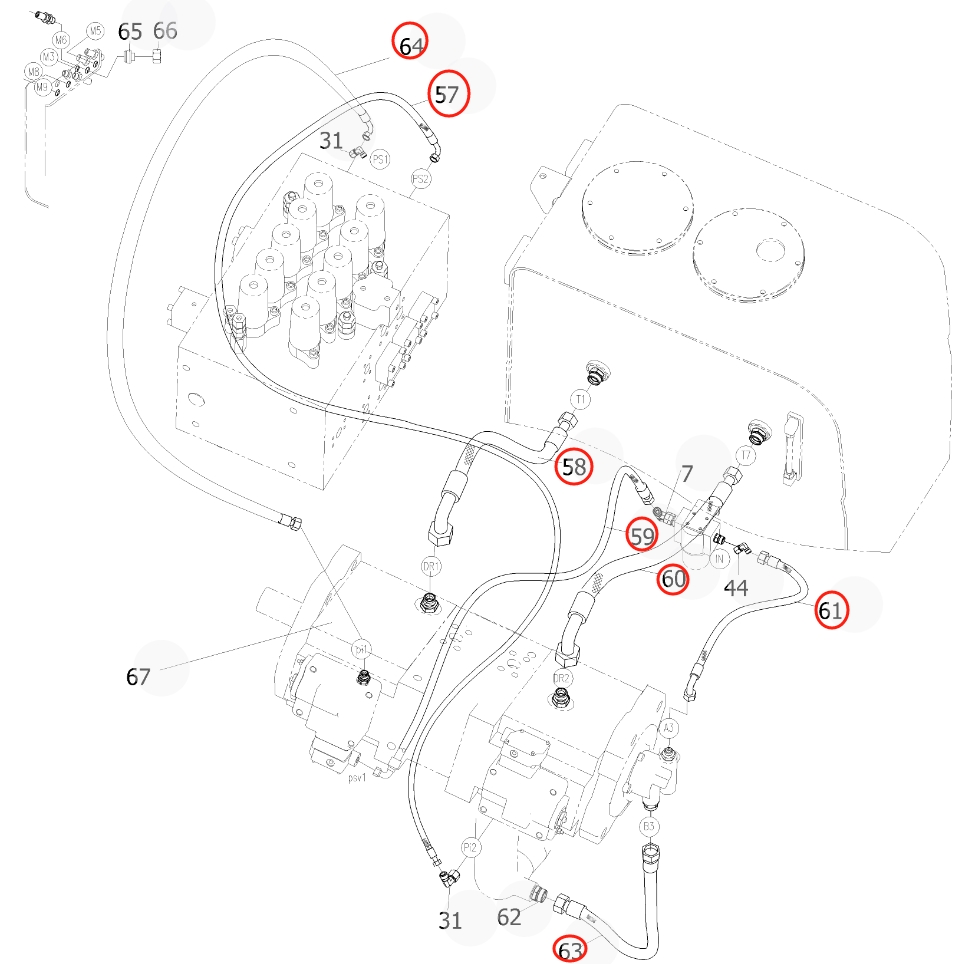

Installation diagram — Pipe No. 57
Locate Pipe No. 57 in the diagram, then confirm part number 730502000390 before removing the hose.
Repair specifications
- Part number
- 730502000390
- Diagram pipe number
- 57
- Installation route
- 液压泵前PI2~分配阀后PS2
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,900 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
