Individual hose record
160696A1 Hose Repair Specifications
Excavator · Case · CX130C W/B · Swivel Joint
Finished length1,680 mm
Locate this hose

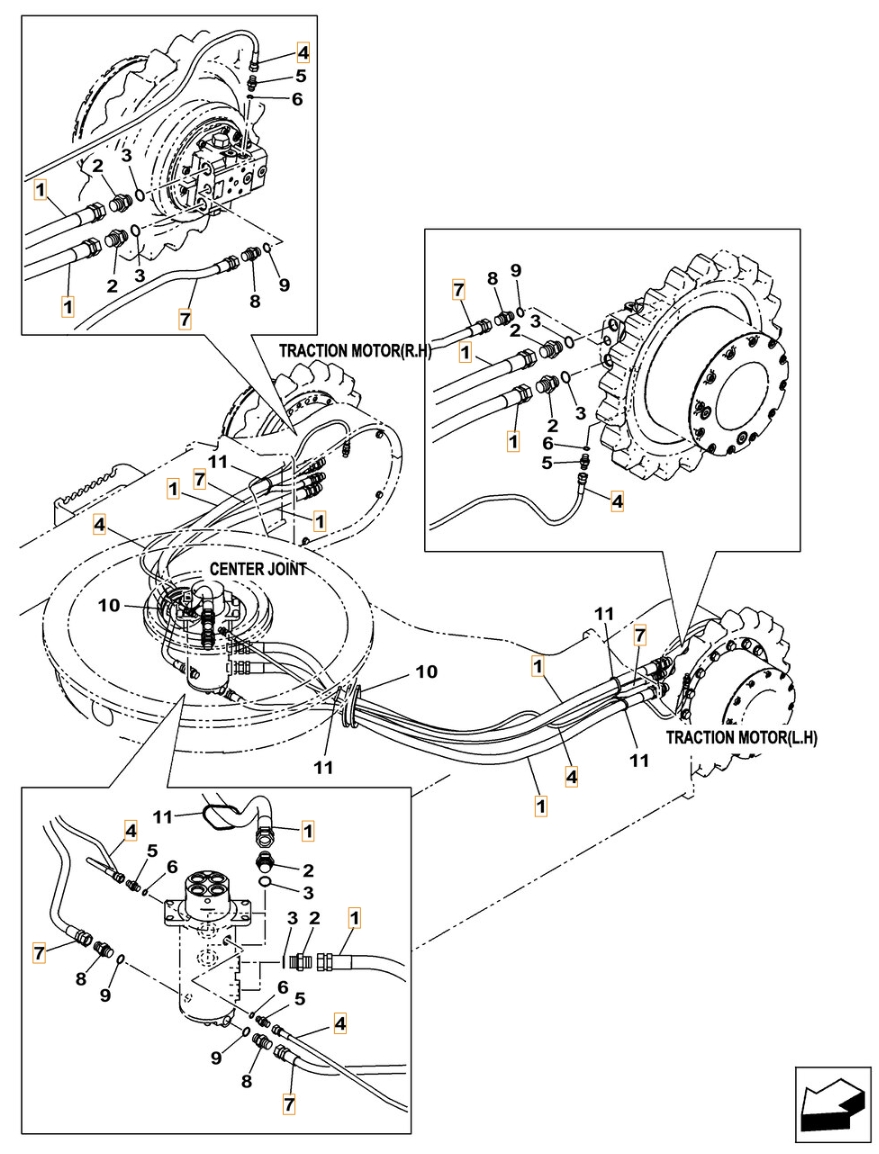

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 160696A1 before removing the hose.
Repair specifications
- Part number
- 160696A1
- Diagram pipe number
- 1
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN19;4SH-12;42.0MPa
- Finished length
- 1,680 mm
- Working pressure
- 42 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 4
