Individual hose record

4639630 Hose Repair Specifications

Excavator · Hitachi · ZX270LC-3 · Pedal

Finished length3,400 mm

Locate this hose

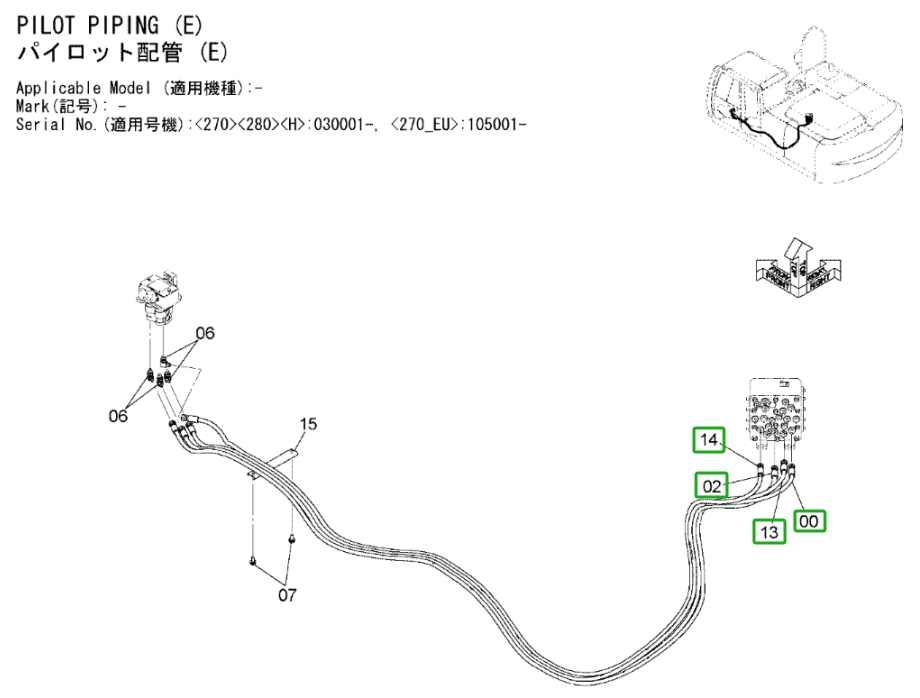

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 4639630 before removing the hose.

Hitachi ZX270LC-3 installation diagram showing hydraulic hose 4639630 at Pipe No. 14 — Hitachi ZX270LC-3Part 4639630 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 4639630
Diagram pipe number: 14
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,400 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 13

4639629

Installation route: 行走踏板~中转接头

Length: 3,450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 2

4629703

Installation route: 行走踏板~中转接头

Length: 3,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 0

4655171

Installation route: 行走踏板~中转接头

Length: 3,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
