Individual hose record
DS2121128 Hose Repair Specifications
Excavator · Doosan · DX160W-3 · Solenoid Valve
Finished length310 mm
Locate this hose

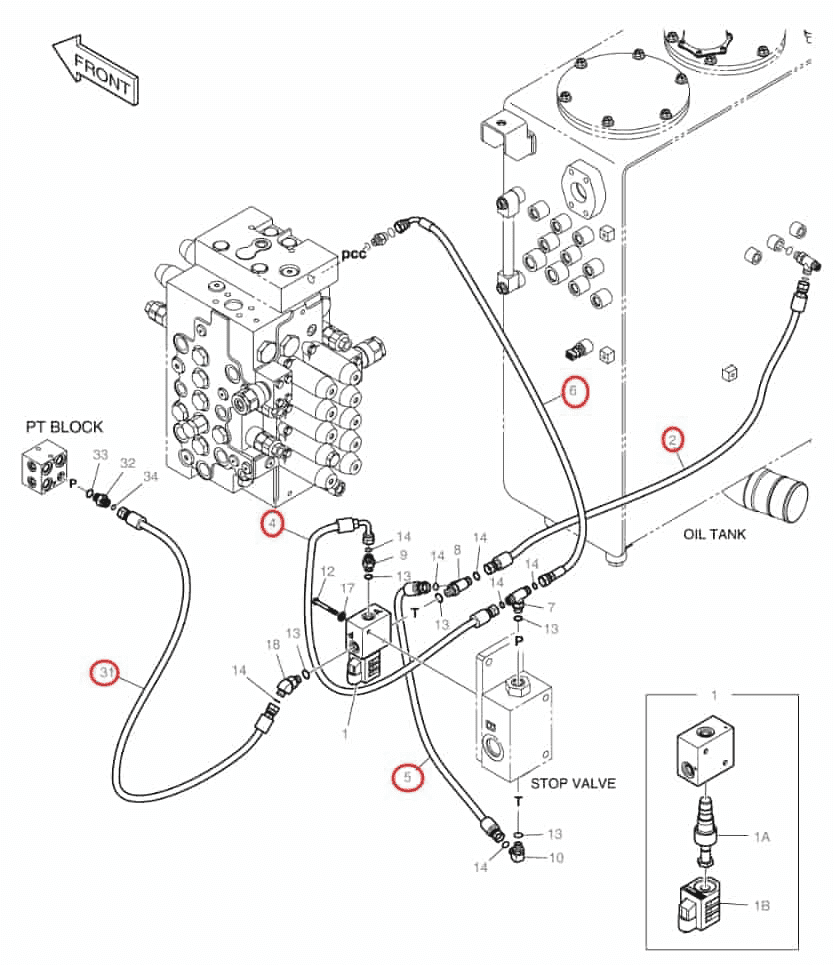

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number DS2121128 before removing the hose.
Repair specifications
- Part number
- DS2121128
- Diagram pipe number
- 4
- Installation route
- 电磁阀A口~截止阀(分配阀后下)P口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 310 mm
- Working pressure
- 22.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
