- Length
- 800 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Individual hose record
152709A1 Hose Repair Specifications
Excavator · Case · CX160 · Hydraulic Tank
Finished length2,100 mm
Locate this hose

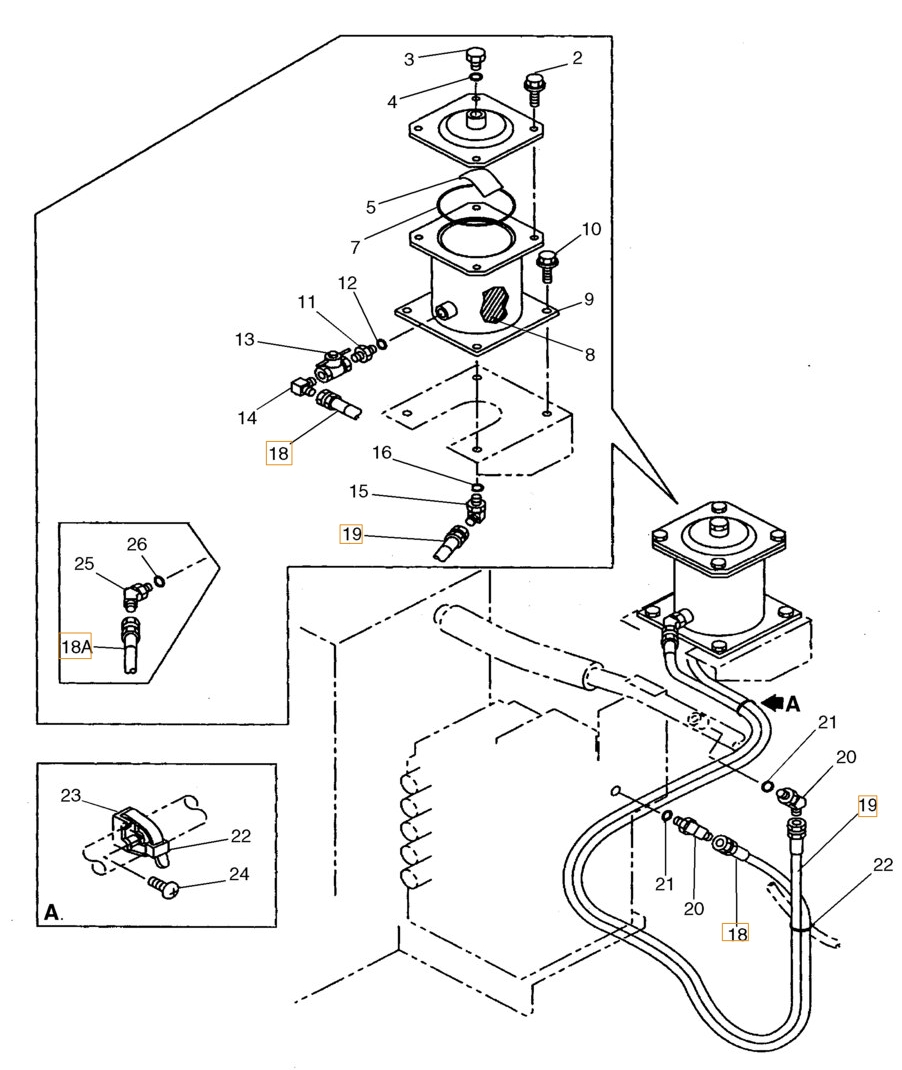

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 152709A1 before removing the hose.
Repair specifications
- Part number
- 152709A1
- Diagram pipe number
- 19
- Installation route
- 液压油滤清器~回油铁管(液压油箱)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,100 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
